1m laser length measuring machine stripe counter preamplifier circuit

Published:2011/5/30 3:37:00 Author:Christina | Keyword: 1m, laser, length, measuring, stripe counter, preamplifier | From:SeekIC

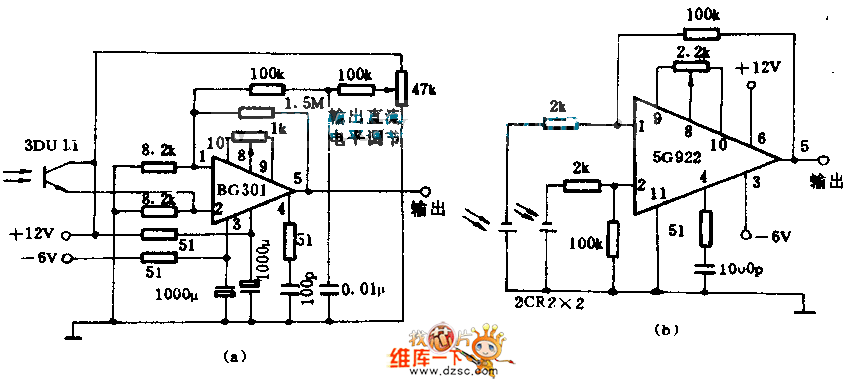

The figure a shows the circuit with the 200 amplification factor, the bandwidth is 0 to 100KHZ, and it can be used in the preamplification of the 1m laser length measuring machine stripe counter. The figure b shows the circuit with the 50 amplification factor, the bandwidth is 0~200KHZ, the phase difference of the two photocells output signal is 180°, and it is amplified by the 5G922. This circuit can be used in the preamplification of the grating moore stripe subdivision circuit.
