1_watt_inverting_power_amplifier_using_an_MC1554

Published:2009/7/21 2:53:00 Author:Jessie | From:SeekIC

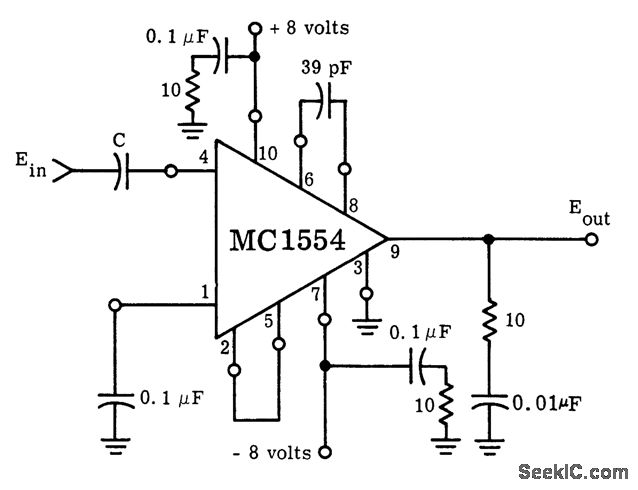

1-watt inverting power amplifier using an MC1554. As shown the voltage gain is 35. An external heat sink is required for dissipation greater than 350 mW (courtesy Motorola Semiconductor Products Inc.).
