1__watt_OTL_audio_power_amplifier

Published:2009/7/20 4:47:00 Author:Jessie | From:SeekIC

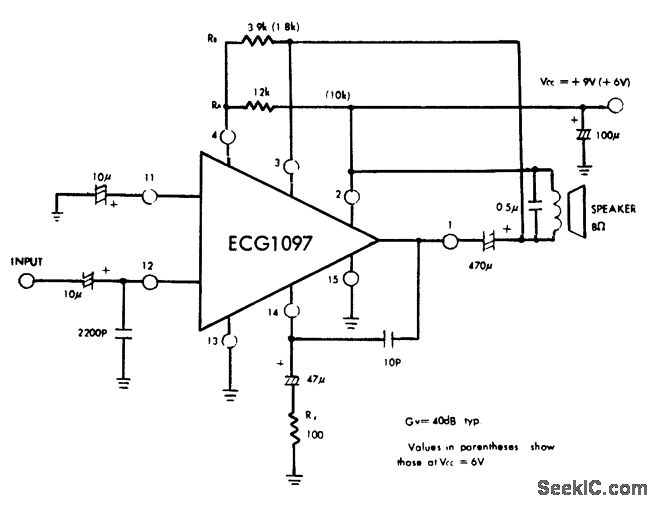

1 -watt OTL audio power amplifier. This amplifier can be operated on 6 volts at a reduced audio output level. Values in parentheses are for 6-volt operation (courtesy GTE Sylvania Incorporated).
