Published:2009/7/9 22:59:00 Author:May | From:SeekIC

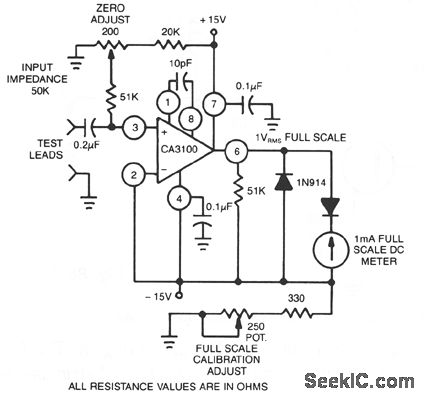

This circuit uses the CA3100 BiMOS op amp to drive a 1-mA meter movement to full scale with 1-V rms input.
