1_MC_SCHMITT_TRIGGER

Published:2009/7/23 21:16:00 Author:Jessie | From:SeekIC

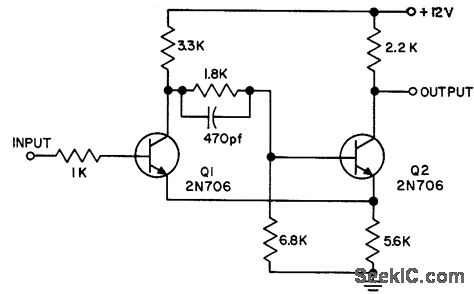

Q1 conducts when input exceeds 6.8 v. Q2 always conducts if input is below 5.2 v. Ambient temperature range is 0 to 71℃. Output at collector has 2 v minimum level change.- Transistor Manual, Seventh Edition, Geneml Electric Co., 1964, p 200.
