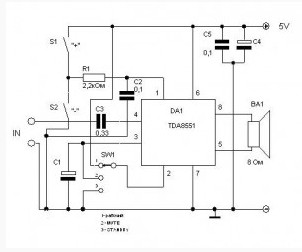

1W Power Amplifier with Electronic Volume Control based TDA8551

Published:2013/3/18 2:01:00 Author:Ecco | Keyword: 1W ower Amplifier, Electronic Volume Control | From:SeekIC

The TDA8551 chip by Philips is a bridge amplifier with output power of 1 watt at a supply voltage of 5V. In this case, current consumption in the silent mode is only 10mA. The chip is made ​​in 8-pin package and requires no heat sink, it can be used in a variety of small devices. Chip is equipped with thermal protection, has an internal delay circuit connecting the load – so that when you turn, you hear a wheeze other wonderful music transients. This chip also built-in an electronic volume control.
