1W Linear FM Booster

Published:2012/9/13 20:55:00 Author:Ecco | Keyword: 1W, Linear FM Booster | From:SeekIC

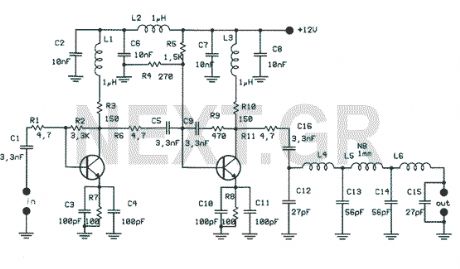

That RF Amplifier is for boosting small fm transmitters and bugs. It use two Philips 2N4427 and its power is about 1Watt. At the output you can drive any linear with BGY133 or BLY87 and so on. Its power supply has to give 500mA current at 12 Volts. More voltage can boost the distance but the transistors will be burned much earlier than usual.! In any case do not exceed the 15Volts. Source: NEXT.GR
