175_MHz_40_W_amplifier_28_V_supply

Published:2009/7/24 2:42:00 Author:Jessie | From:SeekIC

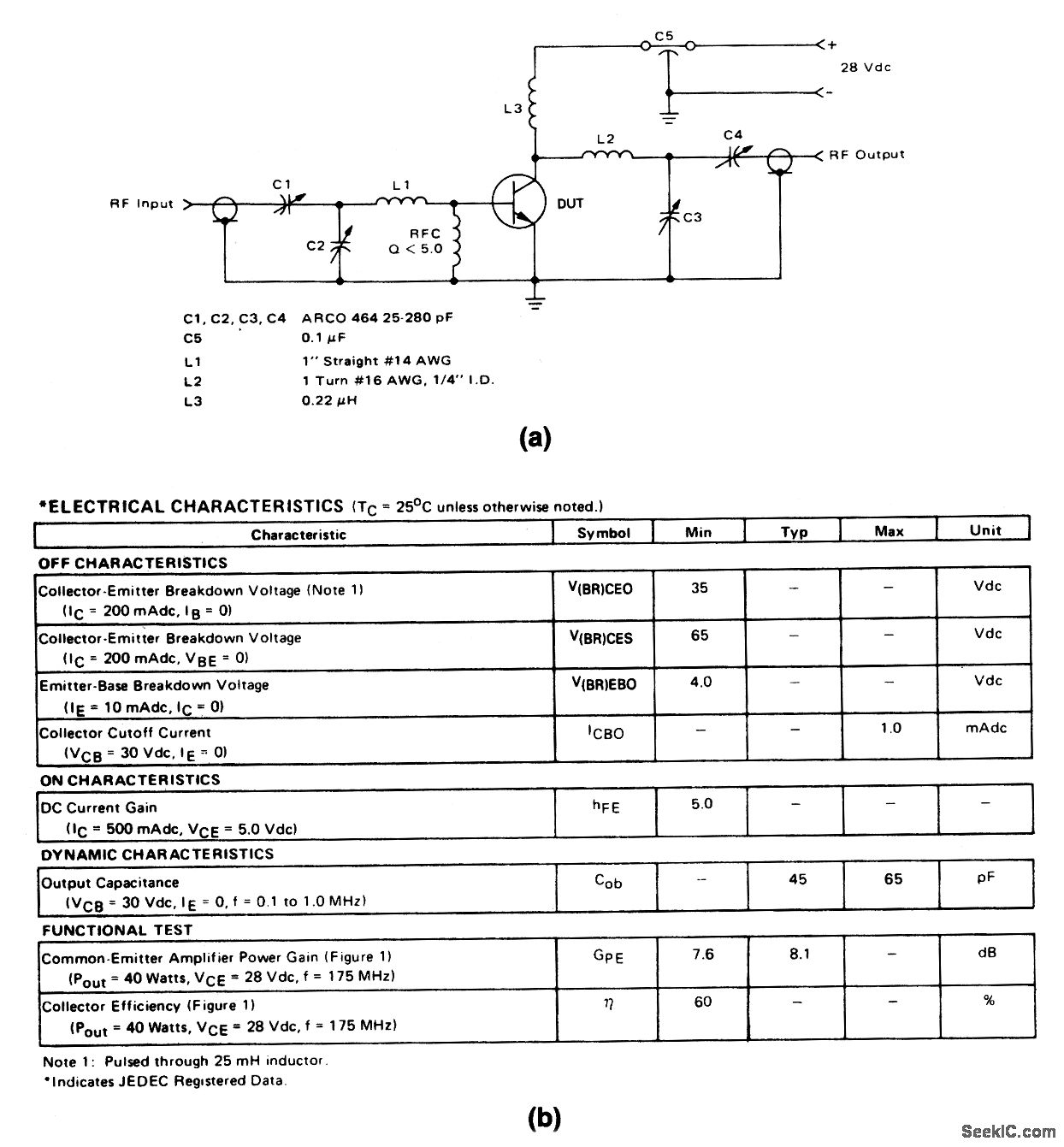

The electrical characteristics for the 2N5643 shown in this circuit are given in Fig. 2-28B.
