16_KC_COMPENSATED_OPERATIONAL_AMPLIFIER

Published:2009/7/13 4:24:00 Author:May | From:SeekIC

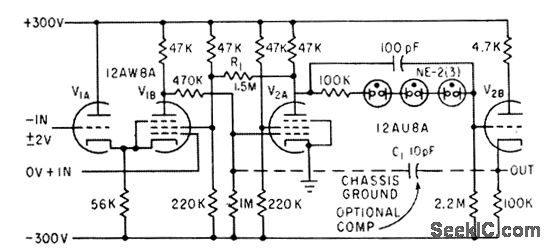

Uses pentode V2A as voltage amplifier to provide up to 140 v peak signals at grid of output cathode follower V2A. Will go up to 50 kc without compensation,-H. Koerner, How to Extend Operational Amplifier Response/Electronics, 33:46, p 90-91.
