160_MC_15_W_POWER_AMPLIFIER

Published:2009/7/14 23:25:00 Author:Jessie | From:SeekIC

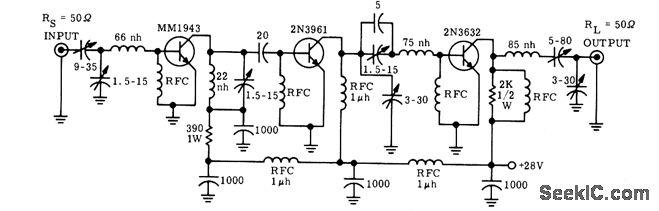

Performance of each of three stages is optimized by using input-output admittance data in network design, to give 30.5 db power gain front class-C operation. Circuit can be expanded to give complete f-m or c-w transmitter by adding appropriate oscillator-buffer-multiplier stages.-R. Hejhall, A 160 MHz 15.Watt Solid-State Power Amplifier, Motorola Application Note AN-214, Nov.1965.
