15_W_TRANSFORMERLESS_AMPLIFIER

Published:2009/7/14 23:47:00 Author:Jessie | From:SeekIC

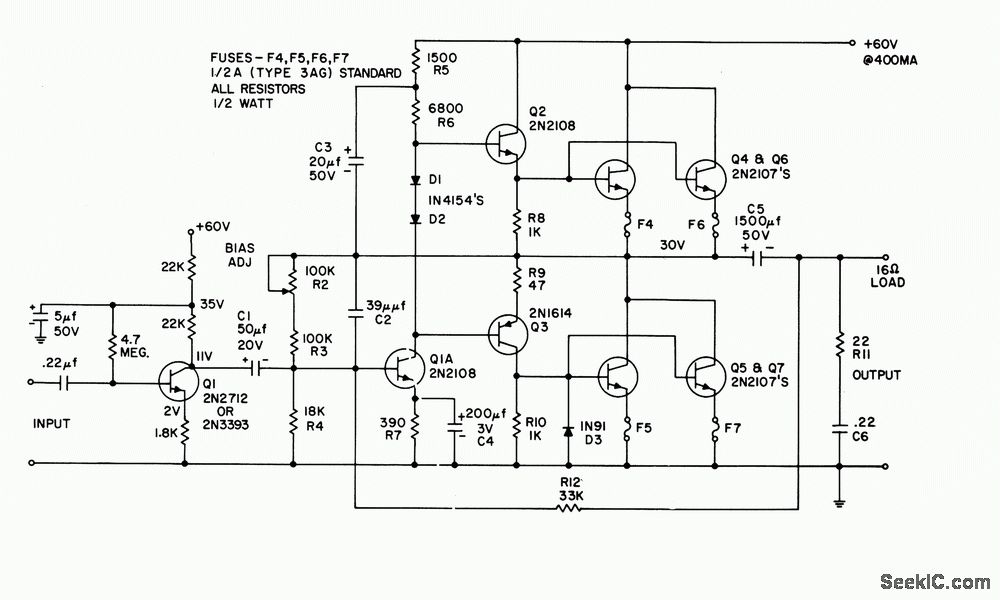

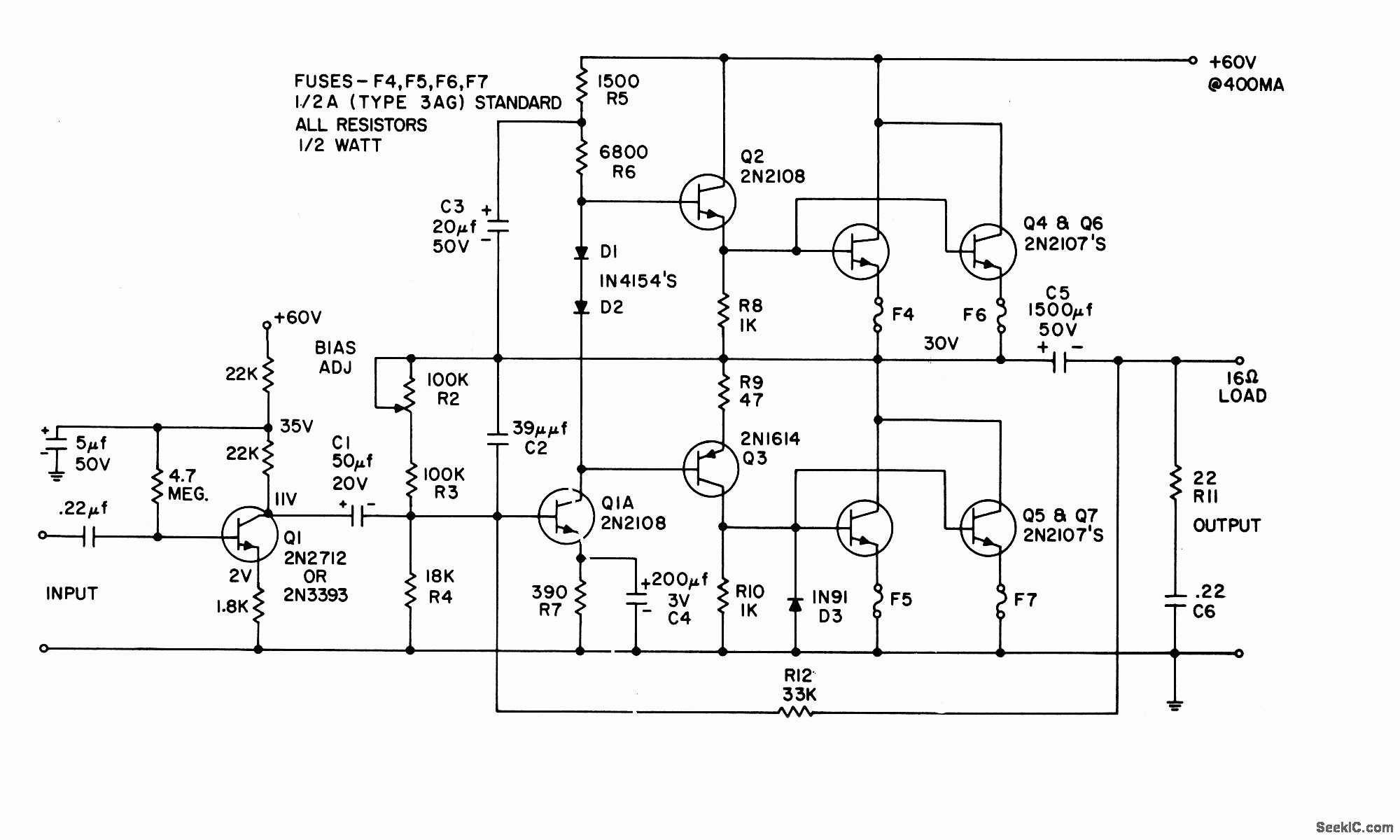

Uses additional input stage to increase input impedance from 3K to over 200K.Power frequency response is flat within 0.5 db from 20 cps to 20 kc. Output impedance is less than 0.3 ohms, for good speaker damping,and harmonic distortion at full power is less than 0.25%.- Transisfor Manual, Seventh Edition, General Electric Co., 1964, p 269.
