150_MHz_30_W_PEP_MOS_amplifier_28_V_supply

Published:2009/7/24 3:41:00 Author:Jessie | From:SeekIC

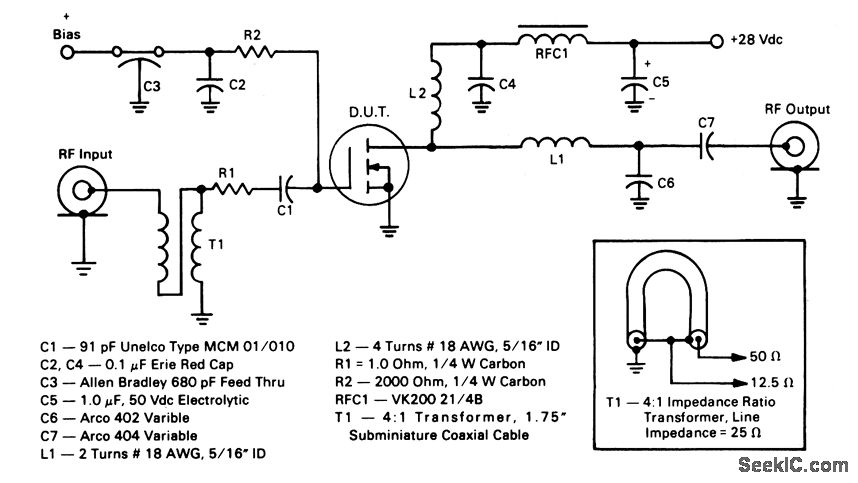

The electrical characteristics for the MRF138 shown in this circuit are given in Fig.2-50B
