1500_W_BF_AMPLIFIER

Published:2009/7/9 1:01:00 Author:May | From:SeekIC

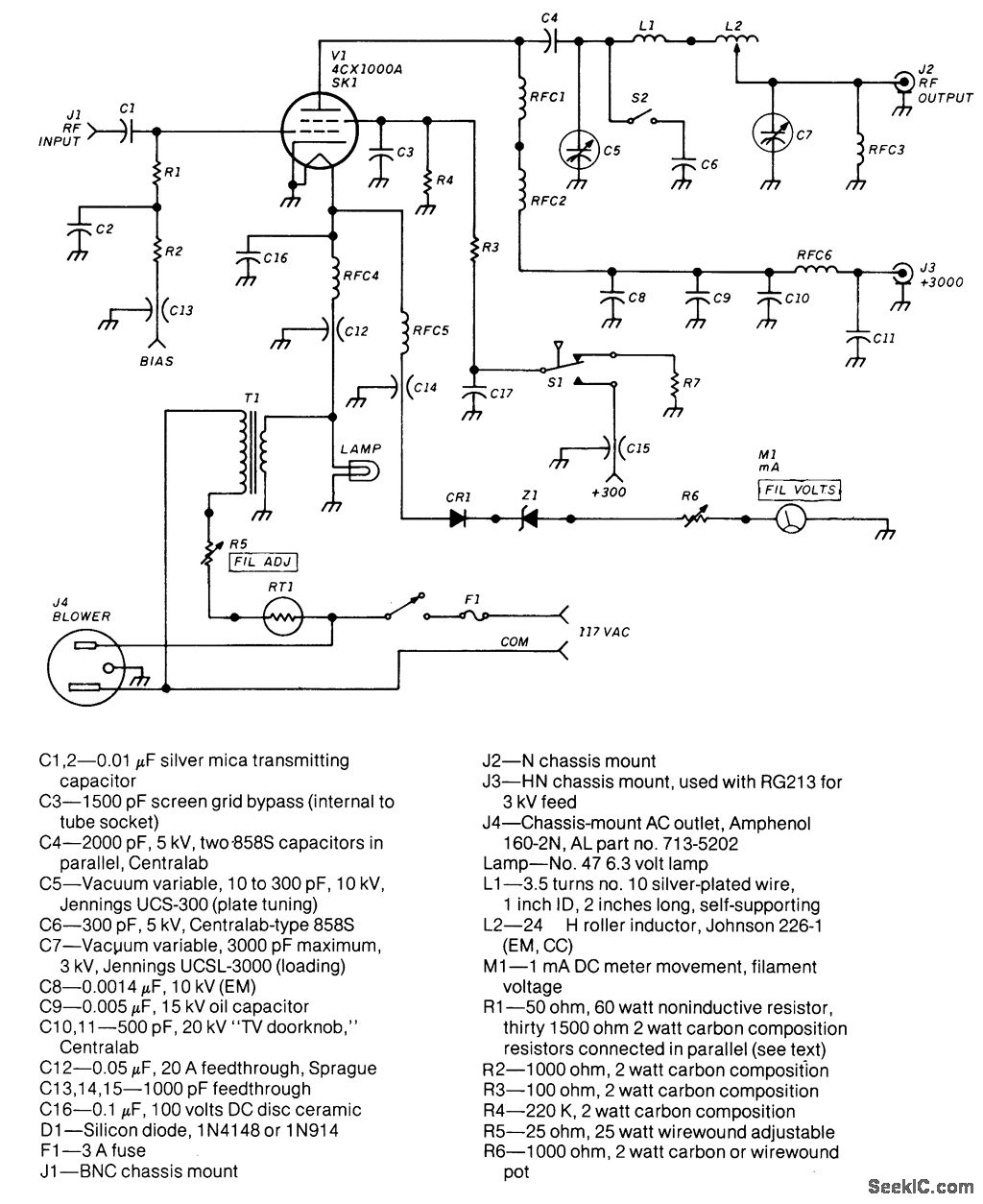

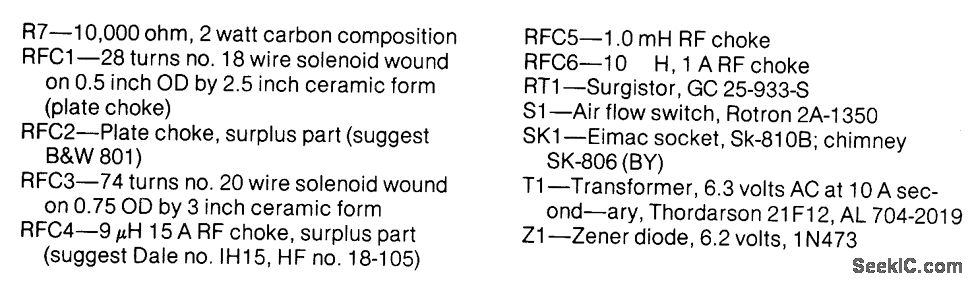

The frequency range of this amplifier is 1.8 to 54 MHz.The amount of RF drive required for full out-put is about 30 W. The grid compartment (R1, R2, RFC4,RFC5)should be shielded from the othercircuitry-especially the output circuitry.
