12 Volt 5 Watt Amplifier

Published:2012/11/21 1:47:00 Author:muriel | Keyword: 12 Volt , 5 Watt, Amplifier | From:SeekIC

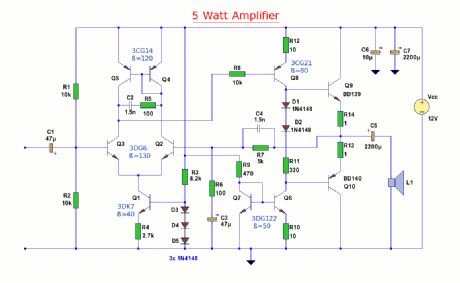

This solid state amplifier uses 10 transistors and 5 diodes. It can deliver 5 Watts into a 4 ohm loudspeaker and about 3 Watts into an 8 ohm loudspeaker. It is made using Chineese transistors from the 1970's and 1980's.
