12_V_PHONO_PREAMP

Published:2009/7/6 5:47:00 Author:May | From:SeekIC

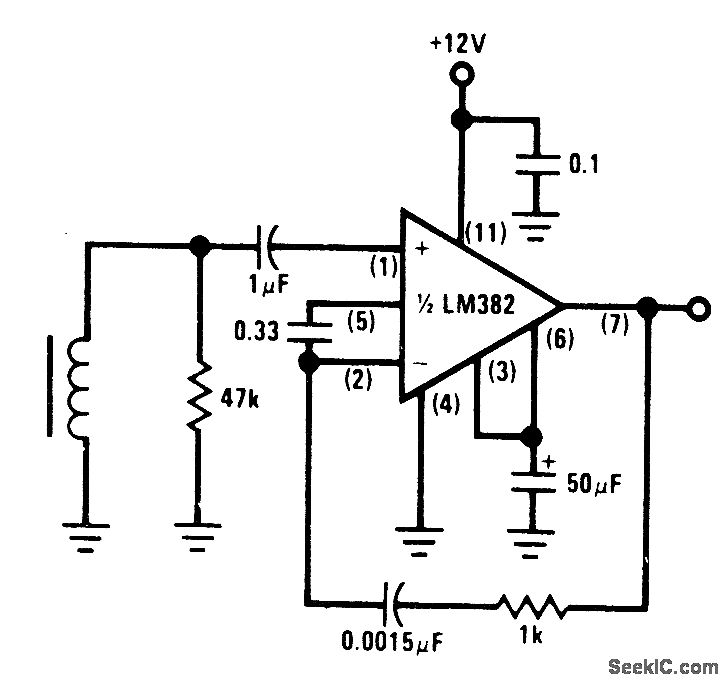

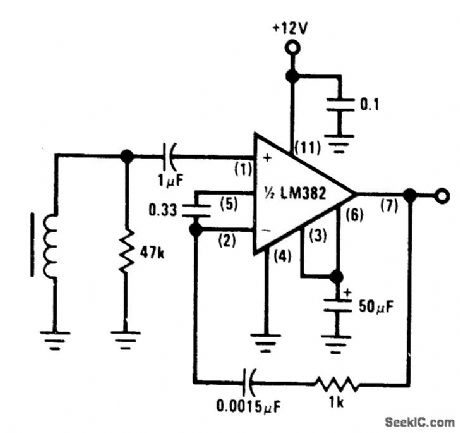

Low-noise circuit has midband 0-dB reference gain of 46 dB. Designed for RIAA response. Internal resistor matrix of IC minimizes parts count. Input is from magnetic cartridge.- Audio Handbook, National Semi-conductor, Santa Clara, CA, 1977, p 2-25-2-31.
