118_136_MHz_BROADBAND

Published:2009/6/25 21:24:00 Author:May | From:SeekIC

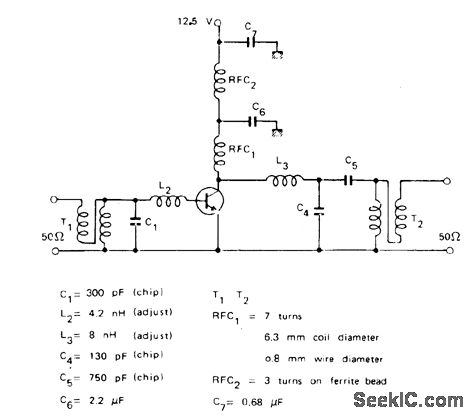

Designed for lowlevel amplitude modulation system. 50-ohm line transf ormers arewound with copperribbon on ferrite core to give 4:1 ratio. Design and con-struction procedures are covered. Transistor is Motorola 2N6083 rated 30 W for 4-W input.-B.Becciolini, Impedance Matching Networks Ap-plied to R-F Power Transistors, Motorola, Phoenix, AZ, 1974, AN-721, p 17.
