10_W_10_METER_LINEAR_AMPLIFIER

Published:2009/6/18 1:45:00 Author:May | From:SeekIC

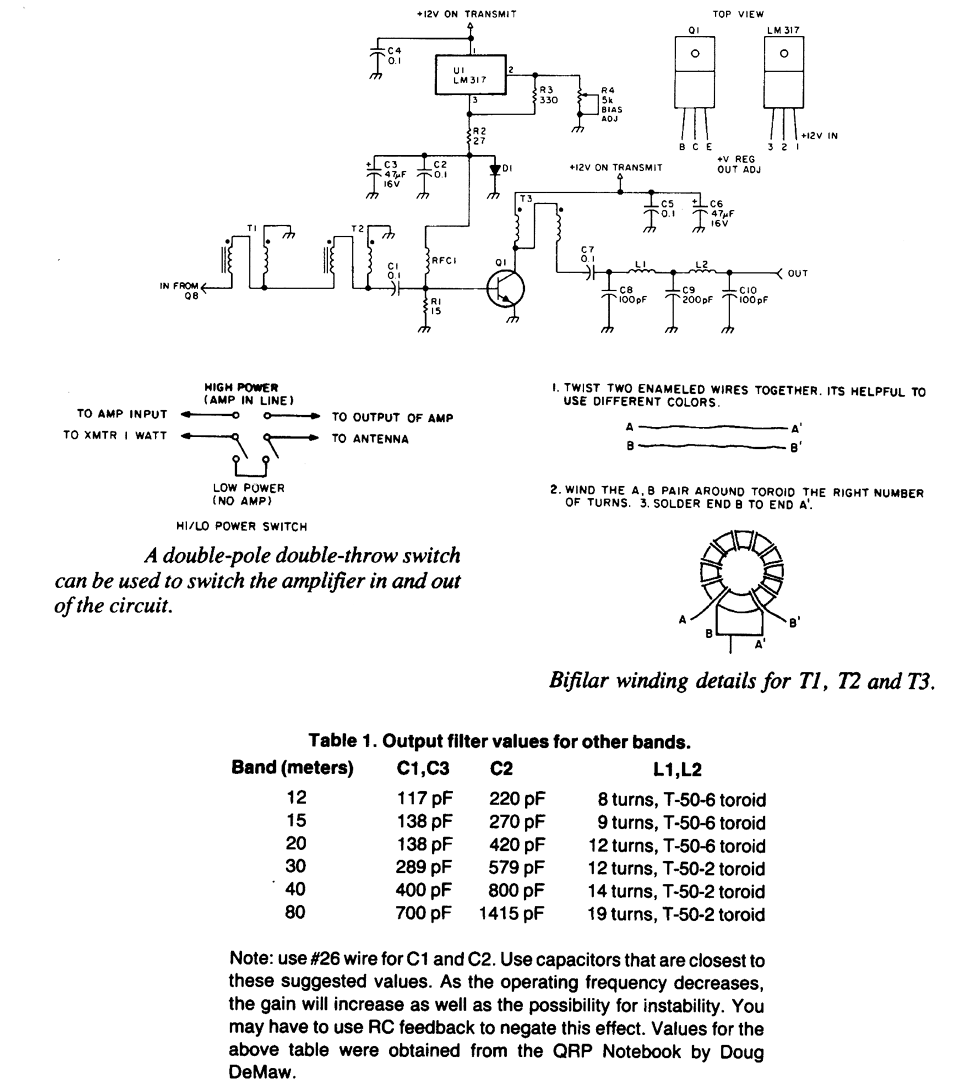

This linear amplifier delivers 10-W PEP output with 1.25-W drive on 10 m. T1, T2, and T3 are 10 turns of bifilar windings on an FT-50-43 toroidal core. The transformers are broadband. Filters for other bands, if desired, are shown.
