10_MC_SUPERREGENERATIVE_I_F

Published:2009/7/16 2:49:00 Author:Jessie | From:SeekIC

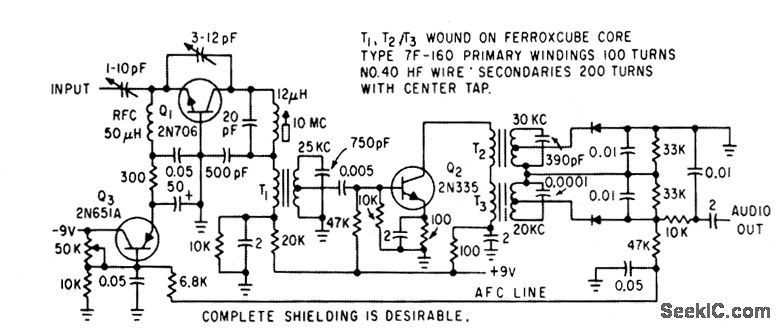

Grounded-base oscillator Q1 is self-quenched at 25 kc. Quench wave is amplified by Q2 and detected in modified Travis discriminator T2-T3.Afc voltage developed at discriminator is fed back to Q3 to maintain emitter current of Q1 at required value for quench rate.-N. H. Brown, Improved Superregenerator has Quench Converter, Electronics, 35:38, p 53.
