100_KV_FOR_ACCELERATOR

Published:2009/7/15 22:41:00 Author:Jessie | From:SeekIC

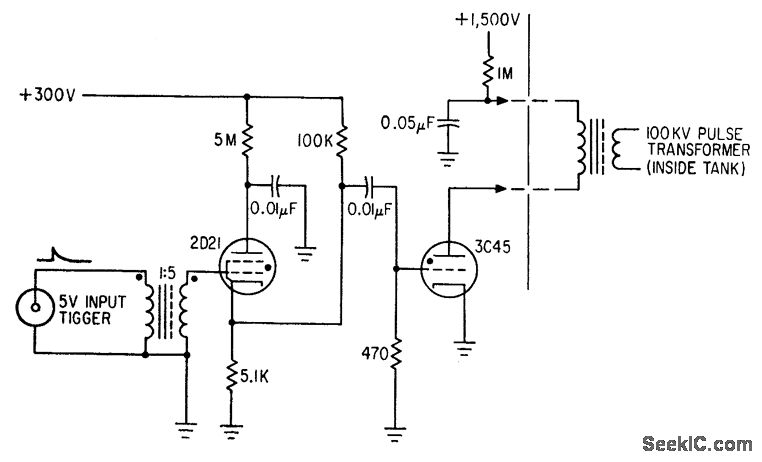

Two thyrcttrons trigger pulse amplifier to send 1,500-v pulse to primary of pulse transformer for step up to l00 kv for Van de Graaff accelerator source. -E. J. Rogers, Van de Graaff Proton Source Receives 1l0 Kilovolt Boosts, Electronics, 35:13, p 58-59.
