SWITCHED_DIVIDER_FOR_BINARY_COUNTER

Published:2009/7/6 3:29:00 Author:May | From:SeekIC

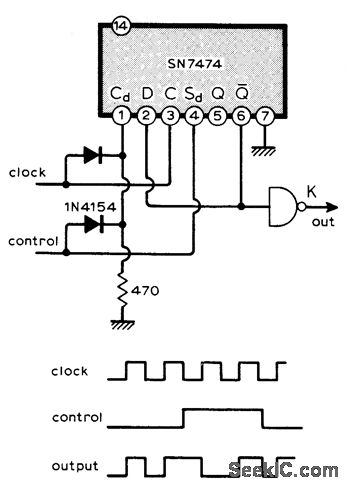

Simple circuit provides method of switching division by two into or out of stream of clock pulses. Output is in phase with input and free of spikes. Switching requires only one D-type flip-flop and one inverter. When control is high, logic action gives normal connection for division by two,using D-typeflip-flop; inverterthen restores phase.-J. M. Firth, Control of a Binary Counter for Division by One or Two, Wireless World, Jan. 1975, p 12.
