SINE_WAVE_CONVERTER

Published:2009/6/22 23:54:00 Author:Jessie | From:SeekIC

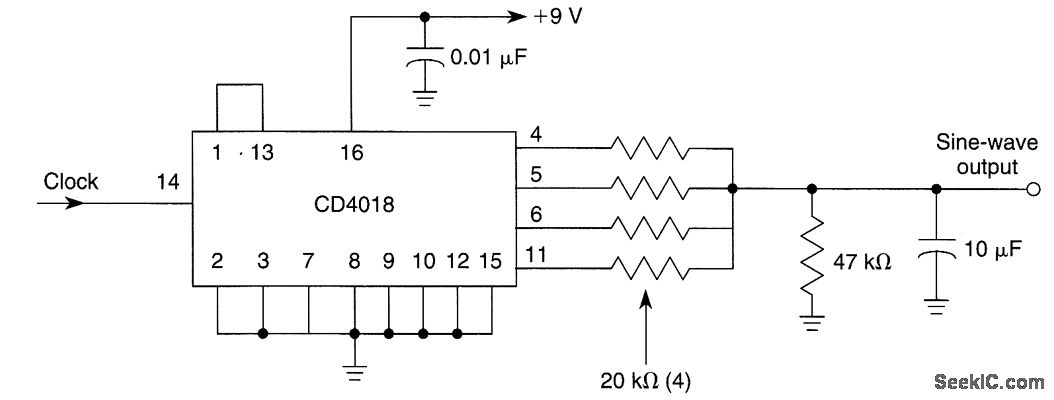

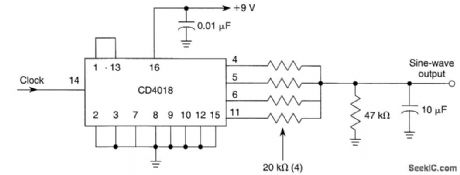

This circuit produces a sine wave with a low-frequency clock input. The clock rate should be 100Hz or less.
