SCHMITT_TRIGGER_OR_SINE_TO_SQUARE_WAVE_CONVERTER

Published:2009/6/18 23:29:00 Author:May | From:SeekIC

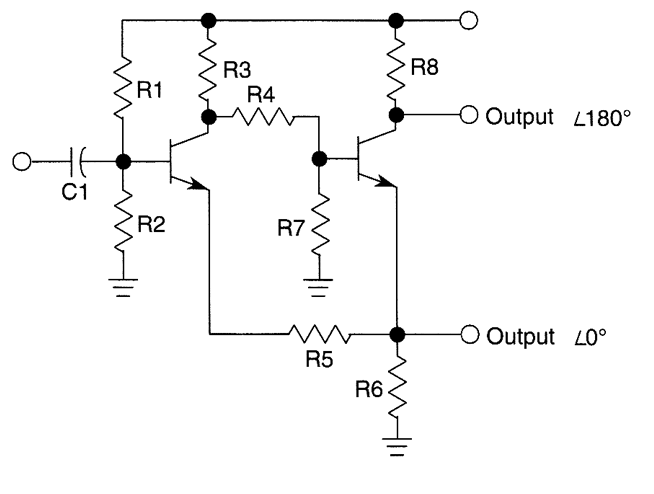

This sine-wave triggered circuit produces two square-wave outputs that are 180° out of phase.
