Precision_ac_to_dc_converter

Published:2009/7/24 22:59:00 Author:Jessie | From:SeekIC

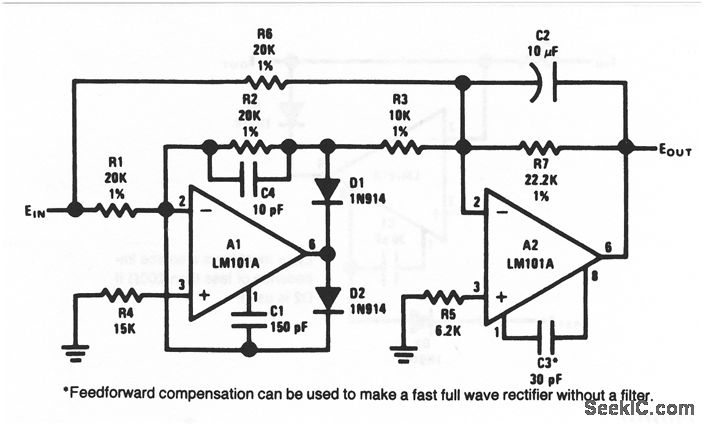

This circuit converts the half-wave rectifier or Fig. 10-39 to a full-wave rectifier. The conversion accuracy is better than 1% to above 100 kHz, with less than 1% ripple at 20 Hz. Using the values shown, the output is calibrated to read the rms value of a sine-wave input.
