PRECISION_PEAK_TO_PEAK_AC_DC_CONVERTER

Published:2009/7/1 1:48:00 Author:May | From:SeekIC

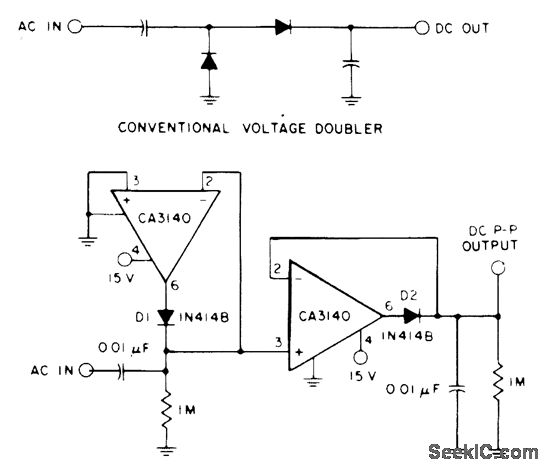

Using a CA3140 BiMOS op amp and a single positive supply converts a conventional voltage doubler with two precision diodes into a precision peak-to-peak ac-to-dc voltage converter having wide dynamic range and wide bandwidth.
