ONE_CHIP_CRYSTAL_CONTROLLED_CONVERTER

Published:2009/6/17 3:42:00 Author:May | From:SeekIC

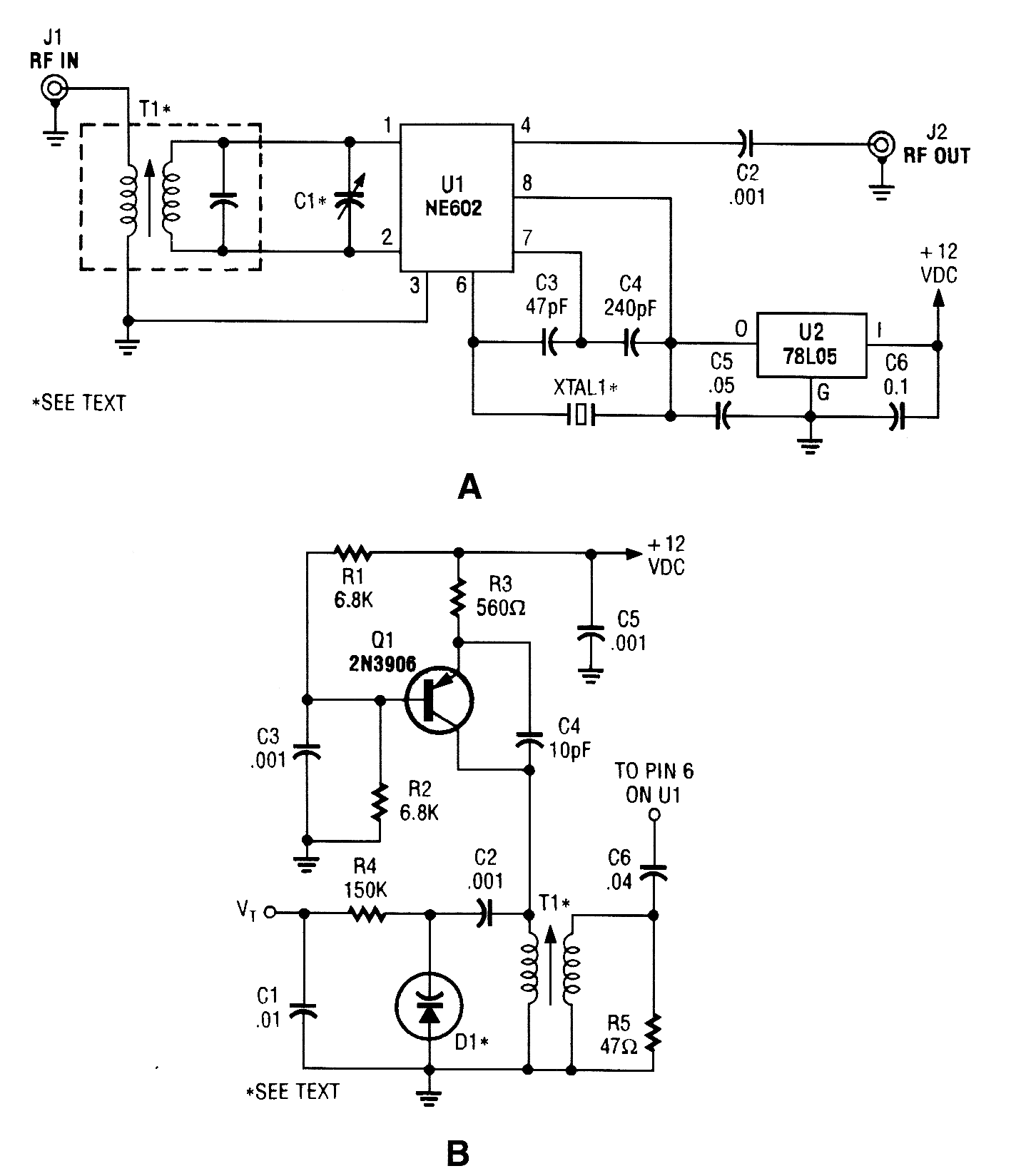

The circuit can work over a wide range of frequencies. XTAL 1 is a fundamental-frequency crystal. T1 and C1 are tuned to the input frequency. An application of this circuit is a simple shortwave converter for AM radios, etc. A tuneable oscillator can also be used, as shown.
