MULTIPLEXER_BCE_TOTPARALLEL_BCD_CONVERTER

Published:2009/6/25 2:35:00 Author:Jessie | From:SeekIC

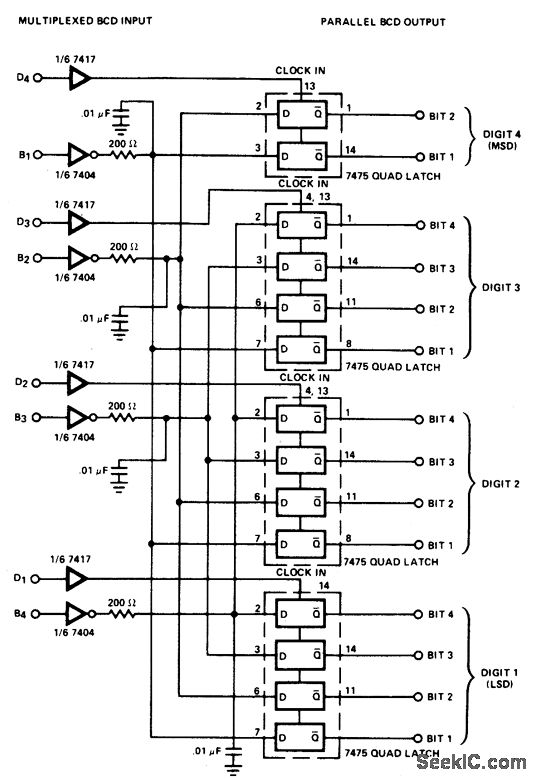

Converter consists of four quad bistable latches activated in the proper squence by the digit srtobe output of the LD110. The complemented outputs (Q) of the quad latch set reflects the state of the bit outputs when the digit strobe goes high. It will maintain this state when the digit srobe goes low.
