High_performance_RMS_to_DC_converter

Published:2009/7/20 3:36:00 Author:Jessie | From:SeekIC

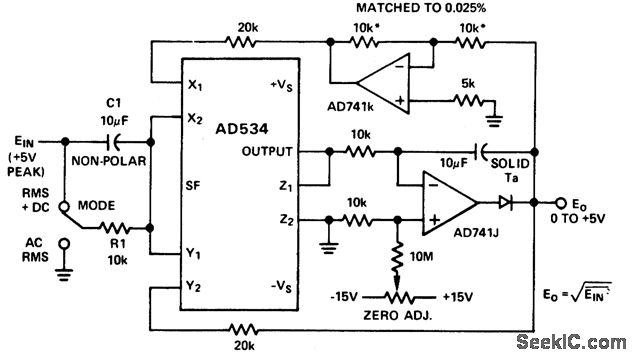

High-performance RMS-to-DC converter. To calibrate switch to RMS+DC,apply an input of say 1.00 volt DC and set the zero adjust until the output reads the same as the input.Check the inputs of ±5 volts(courtesy Analog Devices,Inc.).
