HIGH_PRECISION_V_F_CONVERTER

Published:2009/6/30 21:01:00 Author:May | From:SeekIC

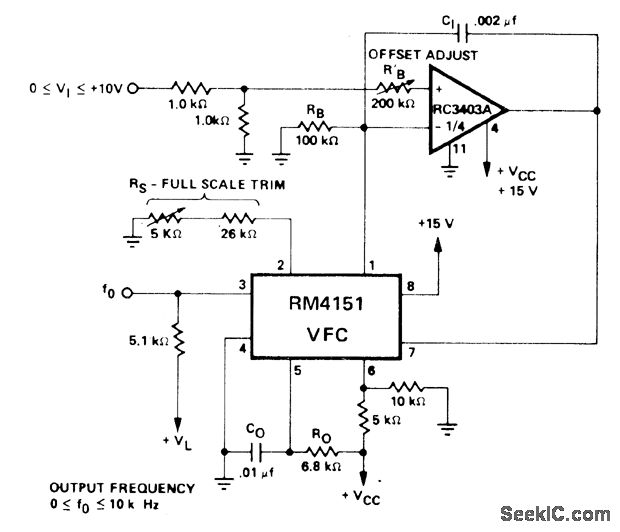

Active integrator using one section of RC3403A quad opamp improves linearhy, frequency offset, and response time of Raytheon RM4151 converter operating from single supply，Opamp develops null voltage，— Linear Integrated Circuit Data Book, Raytheon Semiconductor Division, Mountain View, CA, 1978, p 7－38.
