F_V_convener_used_for_FM_demodulation

Published:2009/7/20 4:38:00 Author:Jessie | From:SeekIC

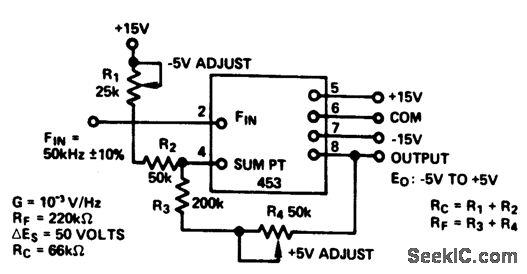

F/V convener used for FM demodulation. The example shown here has the carrier at 50 kHz with ±5 kHz modulating signal. The terms shown are defined as follows: G is gain, RF is the external gain resistor, △Es is the output offset shift and Rc is the offset current resistor (courtesy Analog Devices, Inc.).
