AC to DC Voltage Converter Circuit

Published:2013/10/17 20:24:00 Author:lynne | Keyword: AC to DC Voltage Converter Circuit | From:SeekIC

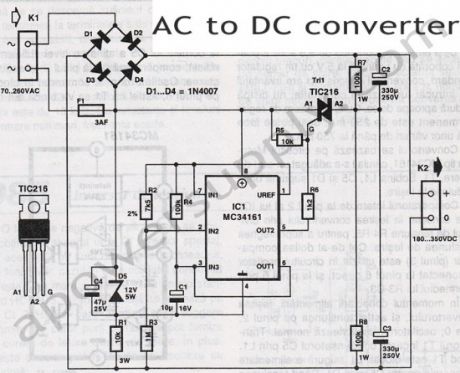

This AC to DC converter circuit is capable of converting an alternative voltage within 70V – 260V range into a DC voltage within 180V to 350V DC range, so it can be used for 110V and 220V too. To achieve this voltage conversion we use a MC34161 rectifier as a voltage doubler at low input voltages and as a classic rectifier at high input voltages. MC34161 includes a reference power supply which delivers 2.54V at pin 1. The signal level applied at pin 2 is internally compared with a 1.27V voltage.D5 zener diode, togheter with R1 and C4 provide IC’s required 12V voltage. Capacitor’s voltage of C2 and C3 must be greater than 250V.
