AC_TO_DC_CONVERTER

Published:2009/6/25 2:20:00 Author:May | From:SeekIC

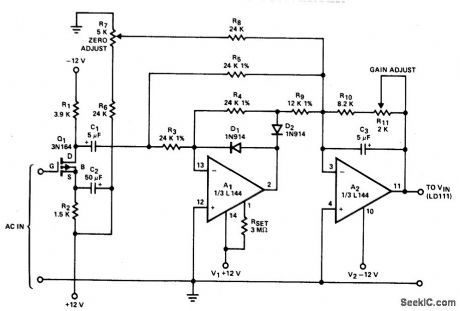

This circuit includes a PMOS enhancement-mode FET input buffer amplifier, coupled to a classical absolute value circuit which essentially eliminates the effect of the forward voltage drop across diodes D1 and D2.
