A_D_CONVERTER_FOR_PCs

Published:2009/6/18 22:57:00 Author:May | From:SeekIC

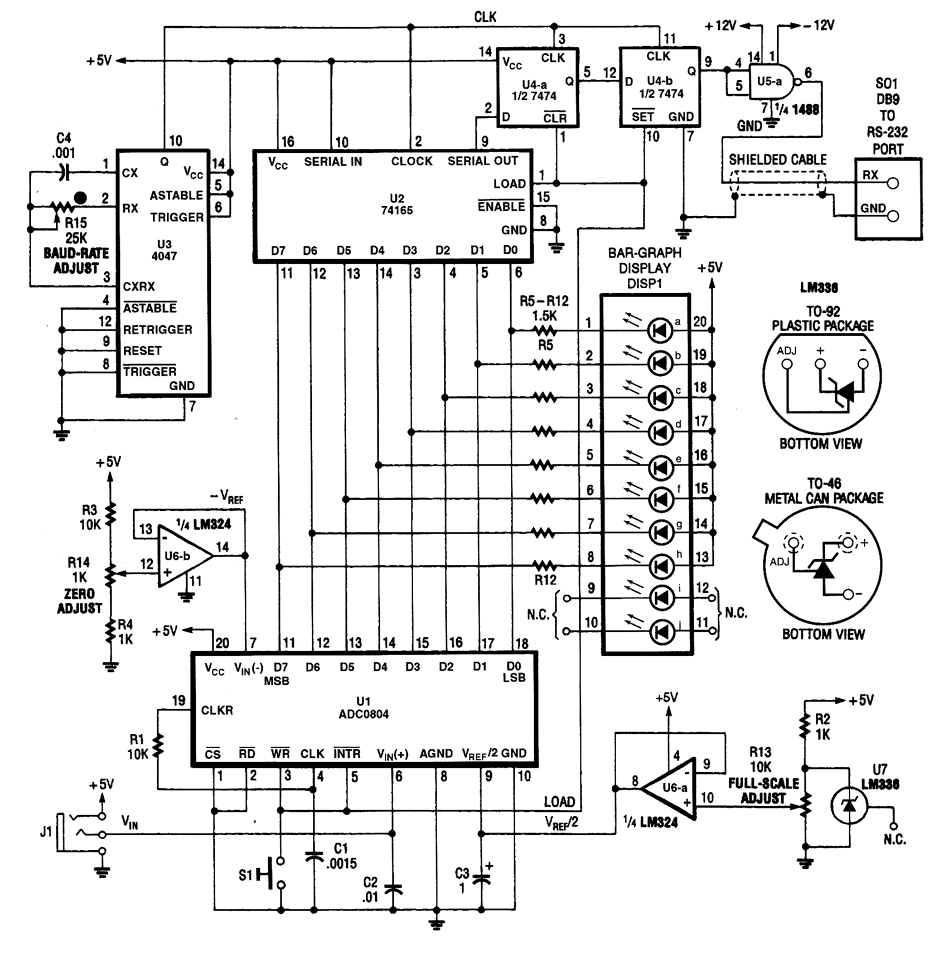

An ADC0804 A/D converter converts analog data to digital. This is fed ister and converted to serial data. U3 provides a baud-rate clock. U4A and start and stop bits needed at beginning and end of each data word.
