3_A_dc_dc_CONVERTER_NEEDS_NO_HEATSINK

Published:2009/6/17 3:53:00 Author:May | From:SeekIC

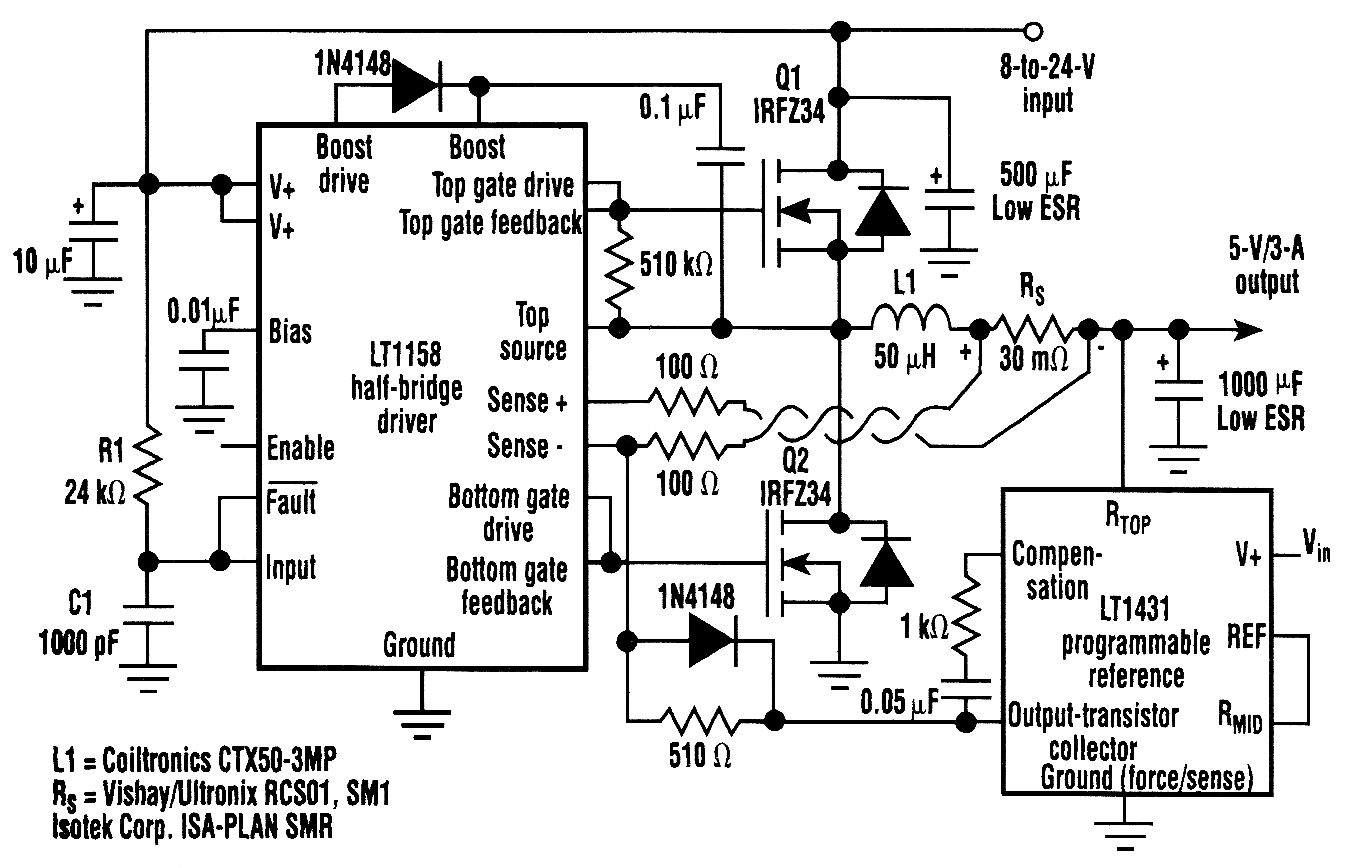

This regulator delivers 90% efficiency at 12-V input, 5-V output. It uses an LT1158 and LT1431 by Linear Technology, Inc. High efficiency is obtained by synchronously switching two power MOS-FETs in a step-down switching regulator. The LT1431 voltage reference combines with the LT1158 half-bridge driver to form a constant off-time current mode loop.
