2 to 4 wire audio converter

Published:2012/9/10 21:04:00 Author:Ecco | Keyword: 2 to 4 wire , audio converter | From:SeekIC

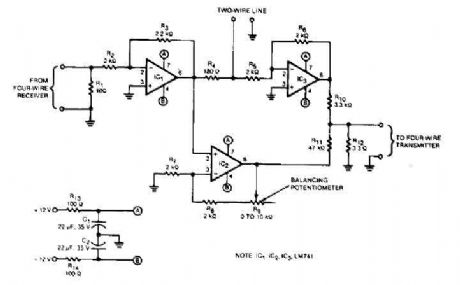

This audio converter circuit maintains 40 dB of isolation between the two halves of entry and exit of a four-line son, while allowing a line connecting two son. A balancing potentiometer, R, adjusts the gain of zero lC2to crossing the inlet to the outlet. Source: discovercircuits
