28_30_MHz_TO_165_MHz

Published:2009/7/16 3:37:00 Author:Jessie | From:SeekIC

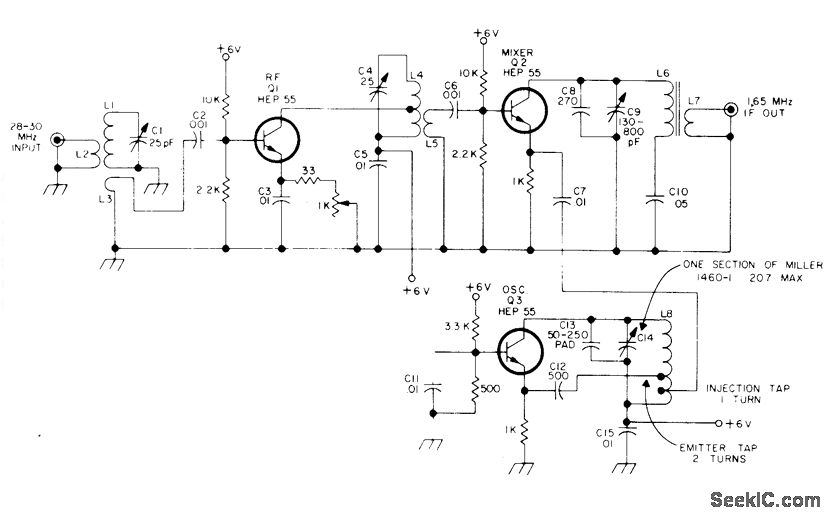

10-meter tuner gives excellent image suppression with 1.65-MHz output, for feeding into inexpensive receiver having 1.65.MHz IF. Tuning capacitors are three-gang Miller 1460-1. Article gives all coil data along with construction details.-B. Hoisington, Tuneable 10 Meter Converter, 73 Magazine, Jan, 1974, p 57-62.
