12_TO_162V_D_C_CONVERTER

Published:2009/7/13 19:57:00 Author:May | From:SeekIC

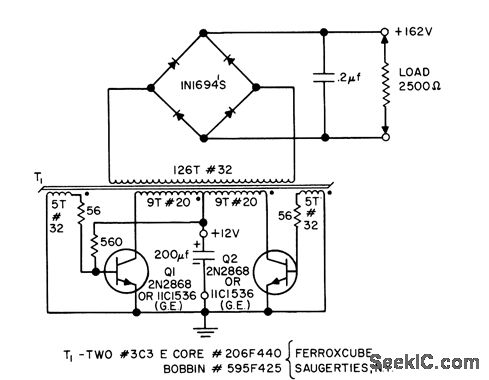

Simple and efficient saturating-core inverter provides 10w output with efficiency of 80%,using operating frequency of about 8.5kc,- Transistor Manual, Seventh Edition, General Electric Co.1964,p237
