light control automatic rice-made machine circuit

Published:2011/6/5 0:28:00 Author:John | Keyword: automatic rice-made machine | From:SeekIC

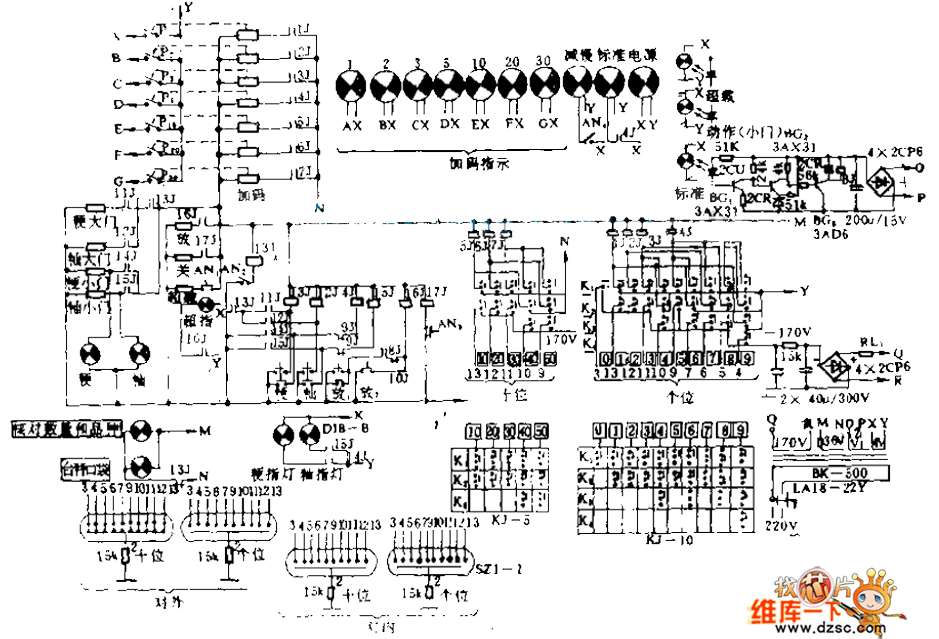

According to the number of the buying rice, such as 15KG, just press the button said 15KG. The button drive control code’s traction magnet to move through the relay. At this time, the code with the weight 15KG automatically drops. Then according to buying varieties of japonica or indica rice, press the species button to control the progressing door of japonica or indica rice. And the rice flows on the platform of the bucket meter. Set light bulb and photodiode on the collimation device. Through amplification, relay acts to drive the traction magnet to work.
