cascode amplifier active preselector circuit

Published:2011/6/17 4:50:00 Author:John | Keyword: cascode amplifier, active preselector | From:SeekIC

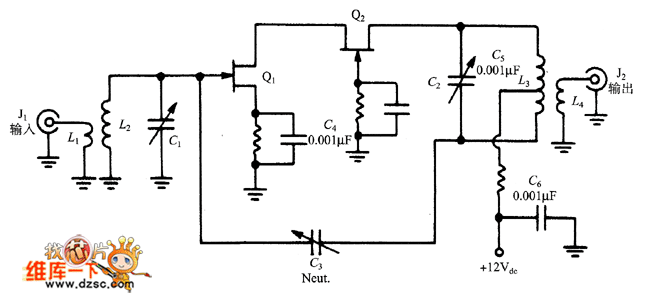

The following picture shows the circuit with a cascode VHF pre-amplifier formed by two pieces of JFET. (It means that Q1 is the direct coupling between the input common-source connection and the output gate connection Q2). In order to avoid the occurrence of self-oscillation circuit, the capacitor (NEUT) is inducted. Capacitance value is tuned to ensure that oscillation would not occur in any frequency circuit of the band-pass. In general, the circuit can be adjusted to a single channel through L2/C1 and L3/C3.
