TMP87CH33N monolithic microcomputer integrated circuit diagram

Published:2011/5/9 1:08:00 Author:Ecco | Keyword: monolithic, microcomputer , integrated circuit | From:SeekIC

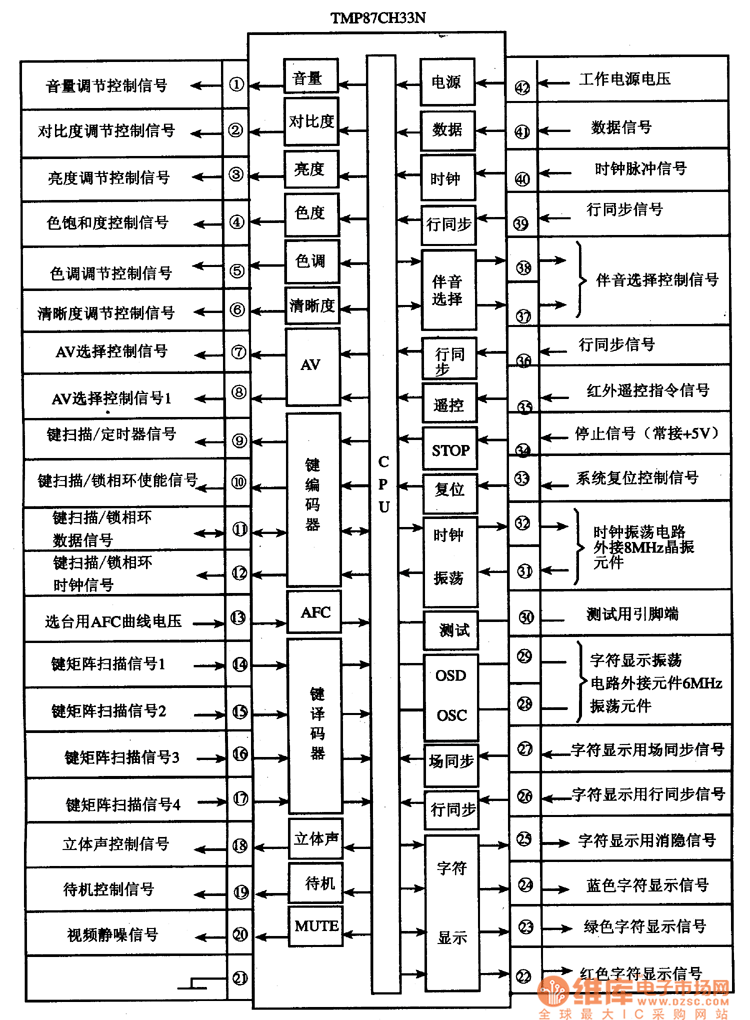

TMP87CH33N is the single-chip microcomputer integrated circuit produced by Toshiba, it is widely used in Toshiba, Konka series of movement and assembly of large-screen color TV. TMP87CH33N integrated circuit uses the plastic package with 42 feet in double rows, the pin functions and signal flowing are shown in Figure 1, the pin letter code and data are listed in Table 1.
