Southeast Soveran central locking and alarming electrical system circuit

Published:2011/7/12 8:34:00 Author:John | Keyword: central locking, alarming, electrical system | From:SeekIC

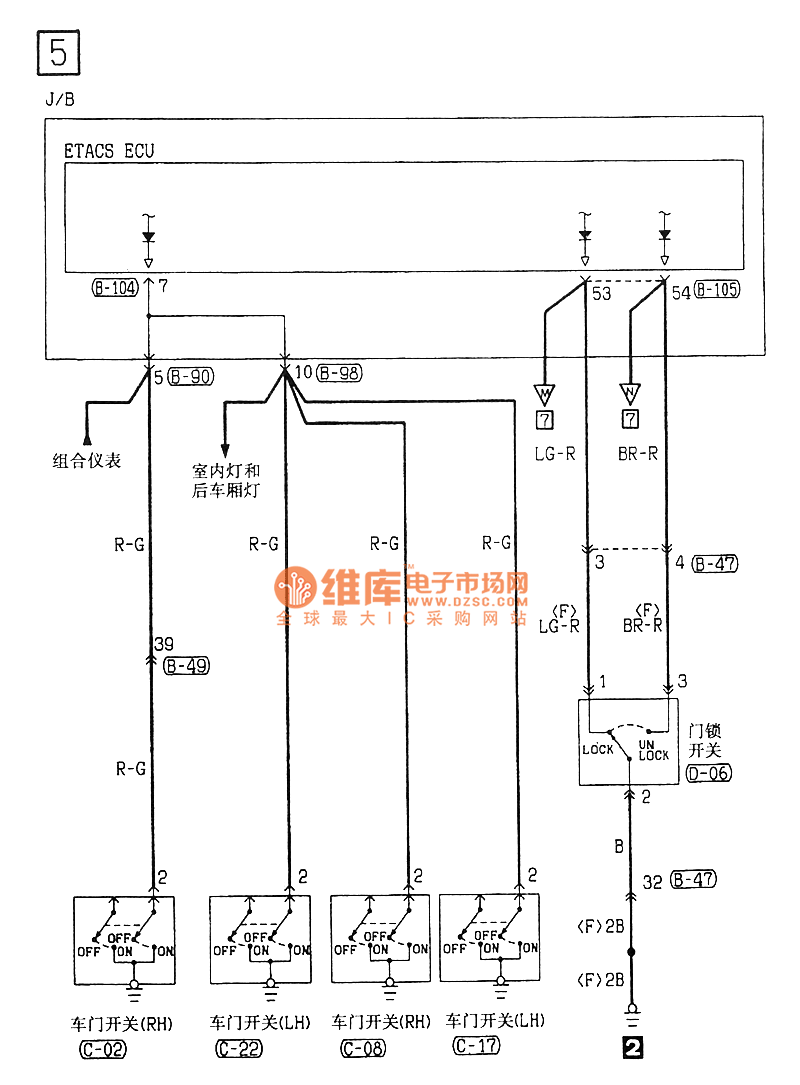

Southeast Soveran central locking and alarming electrical system circuit

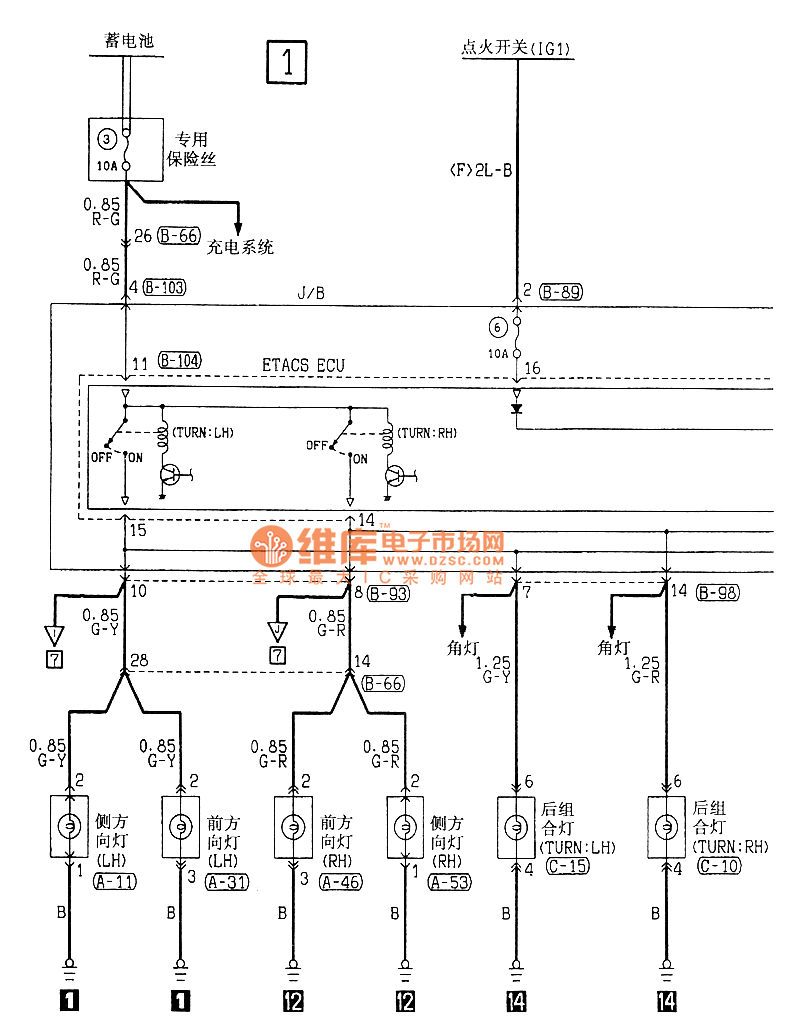

Southeast Soveran central locking and alarming electrical system circuit

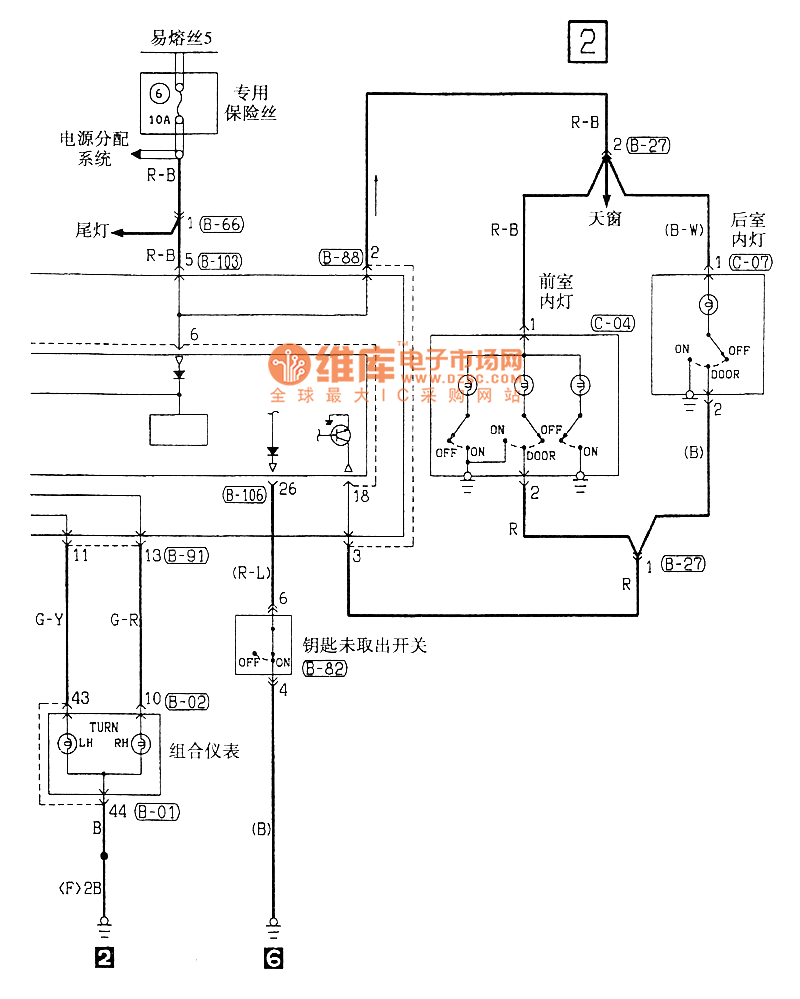

Southeast Soveran central locking and alarming electrical system circuit

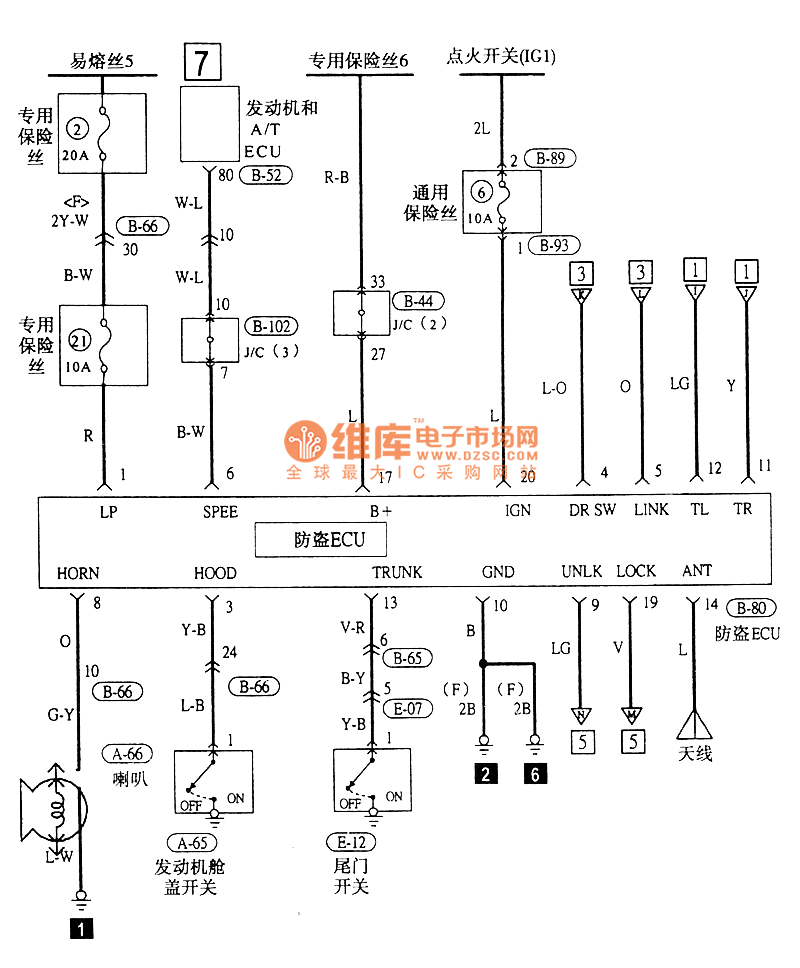

Southeast Soveran central locking and alarming electrical system circuit

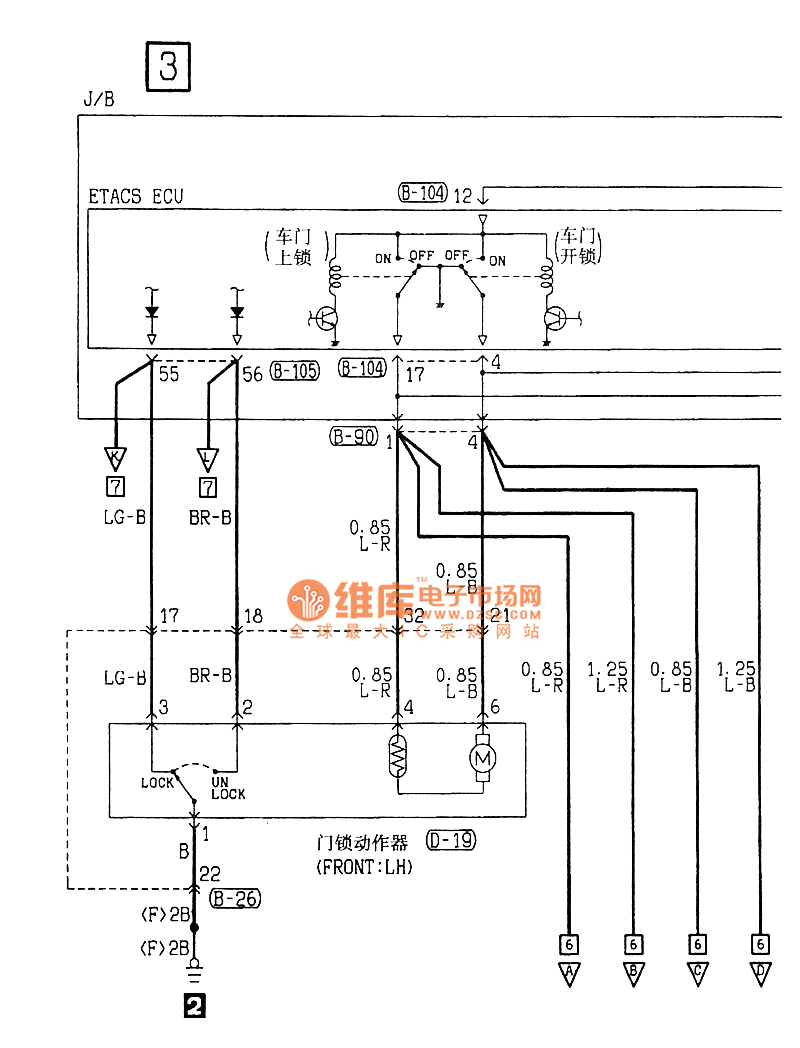

Southeast Soveran central locking and alarming electrical system circuit

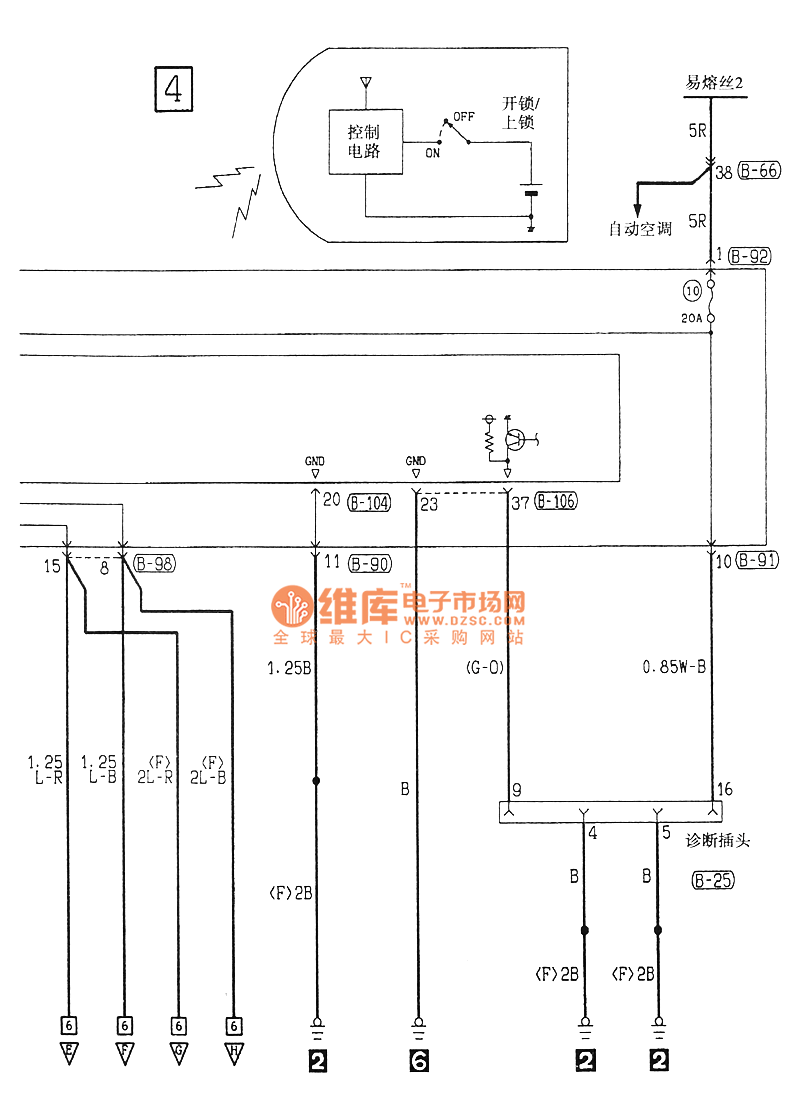

Southeast Soveran central locking and alarming electrical system circuit

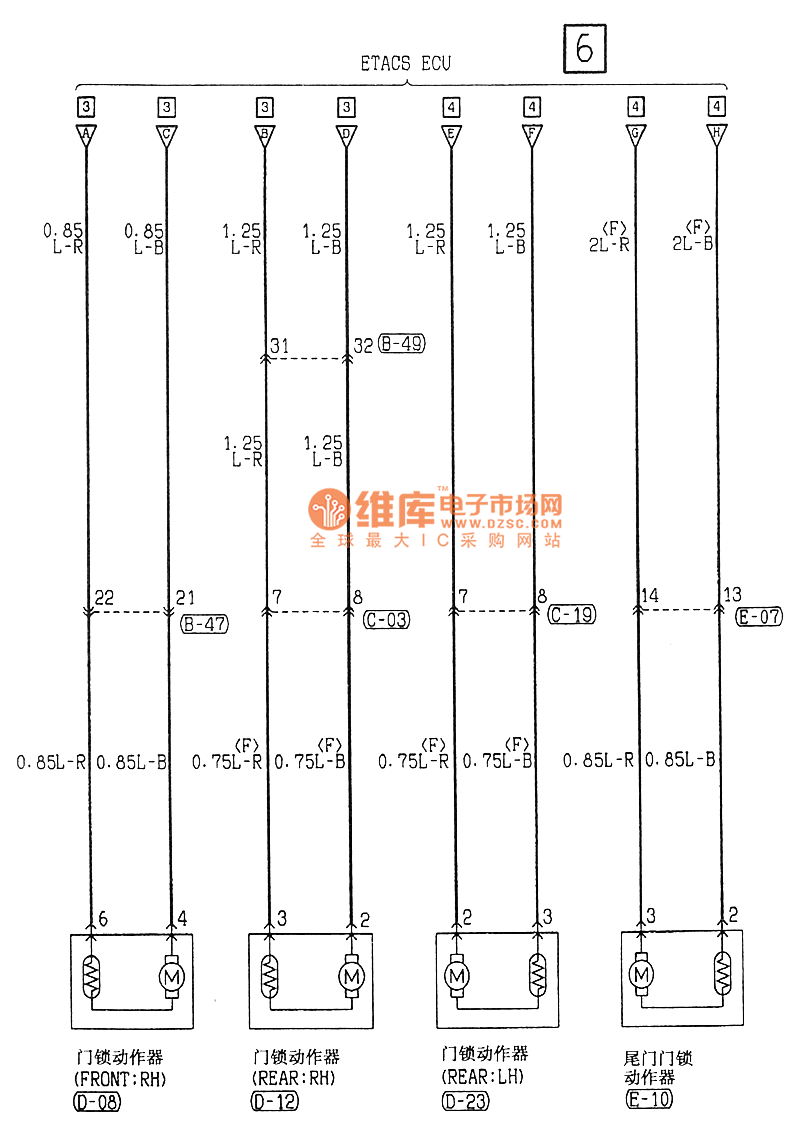

Southeast Soveran central locking and alarming electrical system circuit
