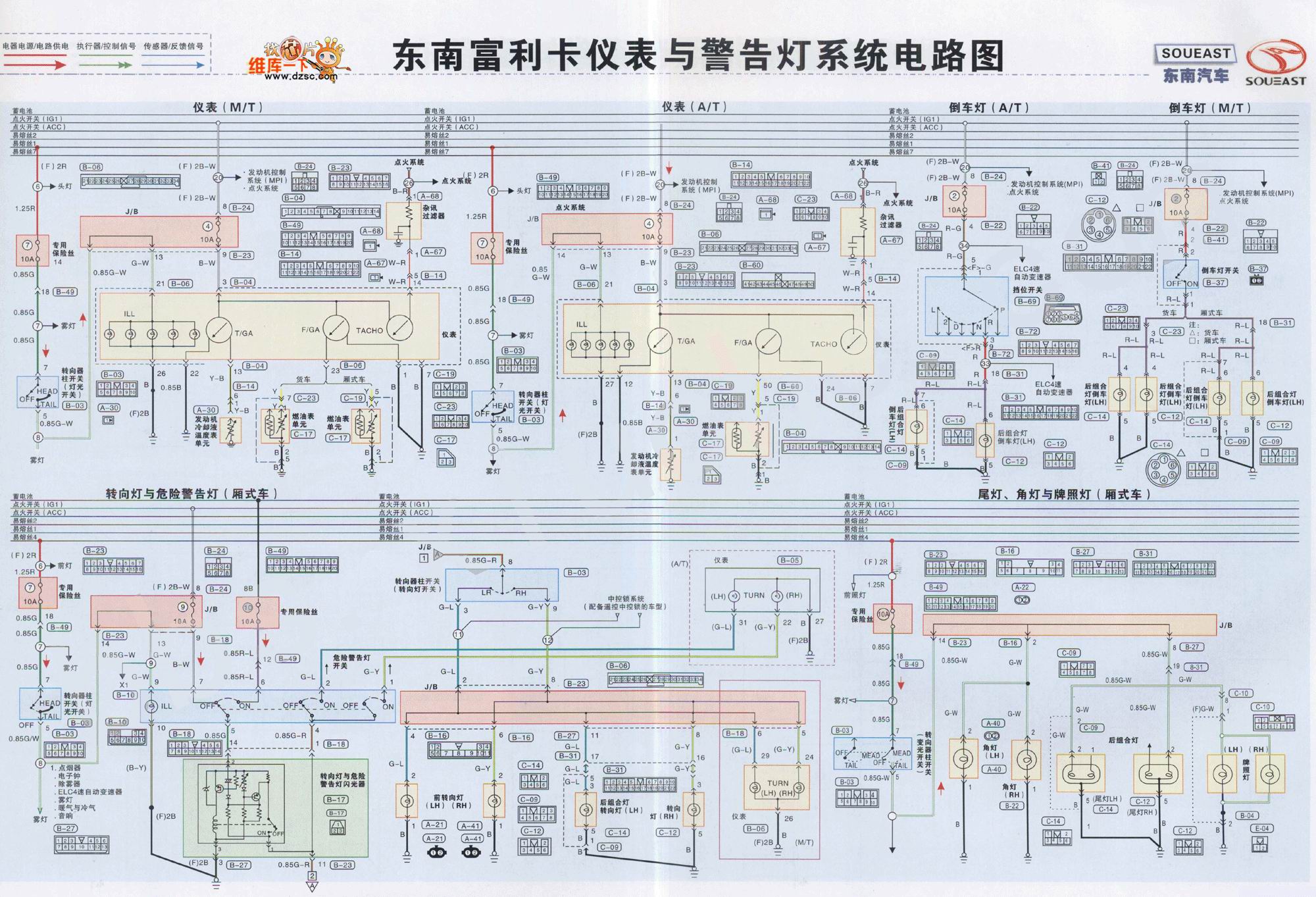

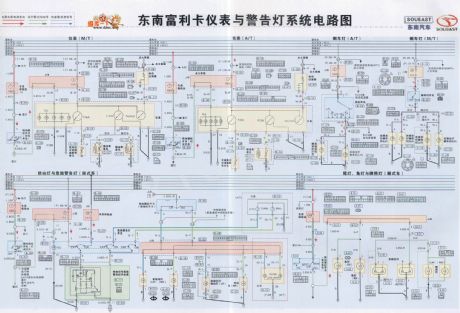

Southeast Freeca meter and warning light system circuit

Published:2011/7/2 3:21:00 Author:John | Keyword: meter, warning light system | From:SeekIC
