Pulse generator circuit with 555

Published:2012/9/27 21:33:00 Author:muriel | Keyword: Pulse generator, 555 | From:SeekIC

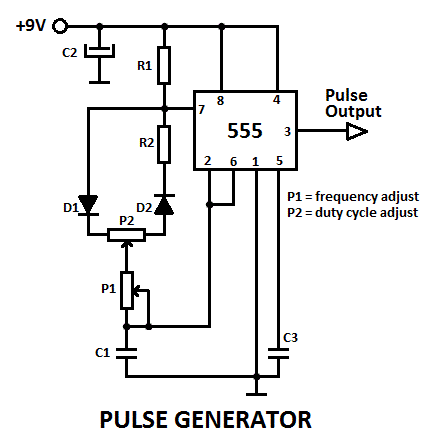

This is a pulse generator with adjustable duty cycle made with the 555 timer IC. The circuit is an astable multivibrator with a 50% pulse duty cycle. The difference from the standard design of a 555 timer is the resistance between pins 6 and 7 of the IC composed of P1, P2, R2, D1 and D2.The diodes D1 and D2 set a definite charging time for C1 which produces a 50% duty cycle in a normal case. The duty cycle (n) is dependent on P1 and P2 in the following manner: n = 1 + P2/P1 If P2 = 0 (n = 100%) then the frequency can be approximately calculated with the following formula: f = 0.69/((2*P1 + P2 + 4.7kΩ)*C1) Pulse generator circuit diagram Printed circuit layout of the pulse generatorComponents ListC2 = 10µFC3 = 0.1µFR1 = R2 = 4.7KD1 = D2 = 1N4148IC = 555C1, P1 and P2 must be calculated
