Light Control Street Lamp Circuit Using ne555

Published:2011/5/5 20:25:00 Author:Robert | Keyword: Light Control, Street Lamp | From:SeekIC

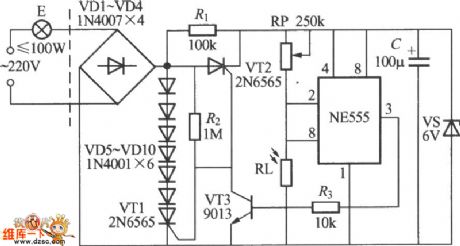

As shown this circuit is specially designed. The light control switch and the electrical networks are connected by the two-wire connected method. It can replace the general switch directly to make the normal lamps be the light control automatic street lamps.
