High-pass filter circuit

Published:2011/6/20 5:57:00 Author:John | Keyword: High-pass filter | From:SeekIC

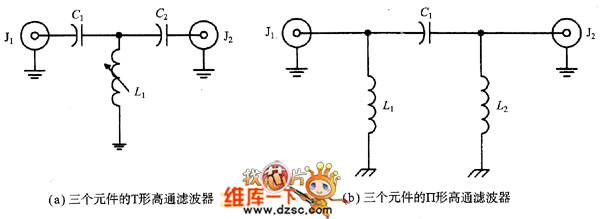

High-pass filter (HPF) cuts off signal frequency which is below -3dB cutoff frequency and allows for signal frequency which is above the cutoff frequency. Figure (a) and Figure (b) show single high-pass filters. These are inversions of LPF single low-pass filters. Capacitance is placed in series in the signal path but the inductance is placed in parallel in the signal channel. The model shown in the figure (a) is T-shaped structure that shown in the figure (b) is Ⅱtype filter.
