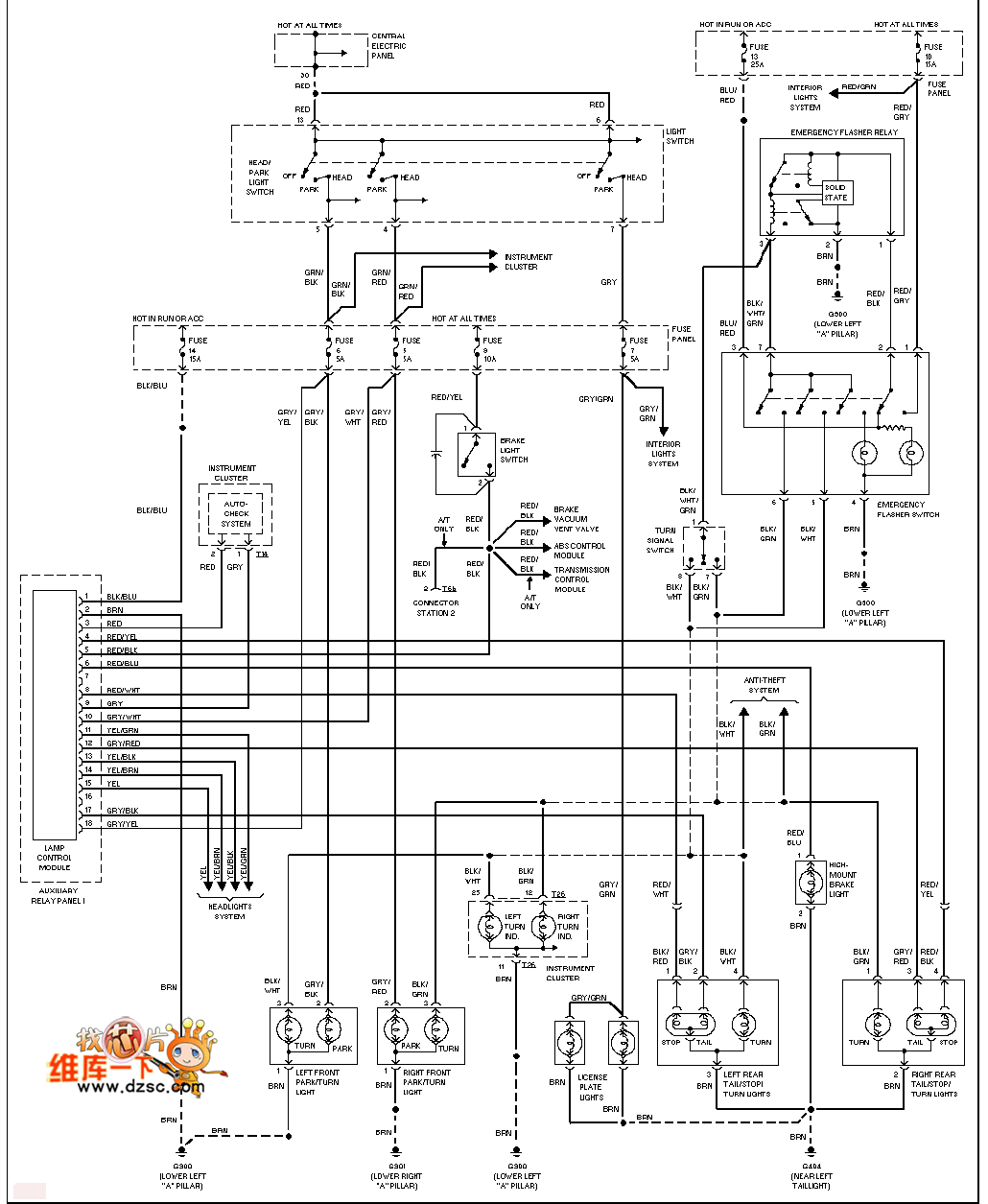

Audi (without DRL) external light circuit

Published:2011/6/25 5:52:00 Author:John | Keyword: external light | From:SeekIC
