Altima A33-EC car/space position PNP switch circuit

Published:2011/8/1 4:28:00 Author:Fiona | Keyword: car/space position, PNP switch | From:SeekIC

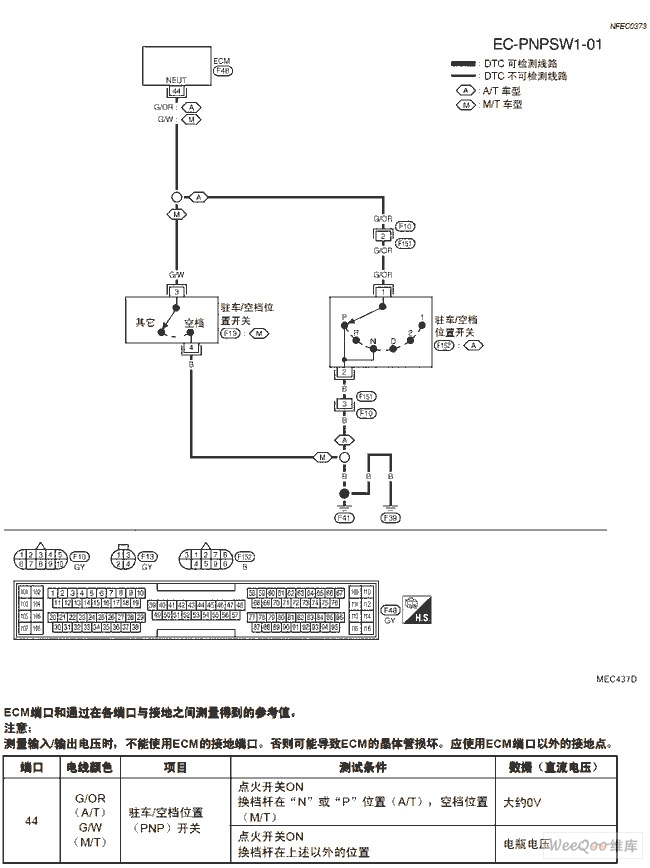

Altima A33-EC car/space position PNP switch circuit is shown as above: ECM port and the measured reference value between every port and the ground Attention:when the circuit measures the input / output voltages,it can’t use the ECM ground port.It could lead to the damage of ECM transistor.It should use ECM port outside of the ground point
