Published:2011/4/25 22:57:00 Author:Ecco | Keyword: 555 , refrigerator , protection | From:SeekIC

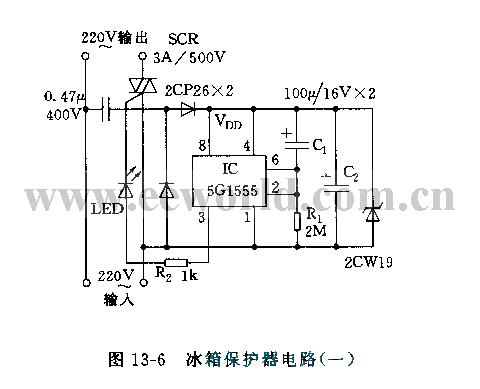

The circuit is shown in Figure 13-6, the circuit is based on 555circuit to form power delay protection circuit. The connection of C1 makes pin 6 be in high level, and pin 3 be in low level when the power failure and supply again, SCR is cut off.
C1 charges, so the pin 2 is lower than the trigger time of 1/3 vdd, that is the delay time td.
Icon corresponding td parameter is about 6 minutes. Setting to 55, pin 3 outputs high level. SCR turns on, the refrigerator gets power and the working indicator LED is lit.
