555 Schmitt Bistable Flip-Flop Circuit

Published:2011/4/20 9:50:00 Author:Robert | Keyword: 555, Schmitt Bistable Flip-Flop Circuit | From:SeekIC

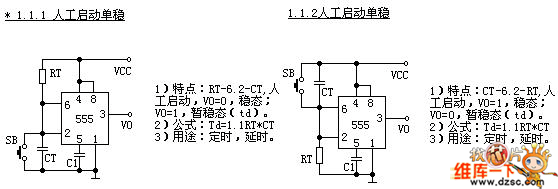

1.1.1 manual start1)Features: RT-6.2-CT, manual start, V0=0, steady-state;V0=1, temporary state(td).2)Formula: Td=1.1RT*CT3)Application: timing, delay. 1.1.2 manual start1)Features: RT-6.2-CT, manual start, V0=1, steady-state;V0=0, temporary state(td).2)Formula: Td=1.1RT*CT3)Application: timing, delay. 555 Schmitt Bistable Flip-Flop Circuit as shown above.
