NiMH Charger for up to six Cells

Published:2011/8/11 2:20:00 Author:Amy From:SeekIC

Paul Goossens

It is impossible to imagine present day society without any batteries. Count the number of gadgets in your house that are powered from batteries, you v/ill be stunned by the number of batteries you will find.

The majority of these devices use penlight batteries and if you’re a little environmen­tally conscious you v/ill be using recharge­able batteries. A few years ago these bat­teries were invariably NiCd types. How­ever, these batteries suffer from a relatively high rate of self-discharge and from the so-called memory-effect. It is now more common to use NiMH batteries. The advantage is that these batteries do not suffer from the memory-effect and generally also have a much higher capacity, so that they last longer before they have to be recharged again.

From the above you can conclude that every household these days needs, or could use, a battery charger. A good charger needs to keep an eye on several things to ensure that the batteries are charged properly. For one, the charger has to make sure that the voltage per cell is not too high. It also needs to check the charging curve to determine when the battery is fully charged. If the charging process is taking too long, this is an indi­cation that something is wrong and the charger must stop charging. Sometimes it is also useful to monitor the tempera­ture of the cells to ensure that they do not get too hot.

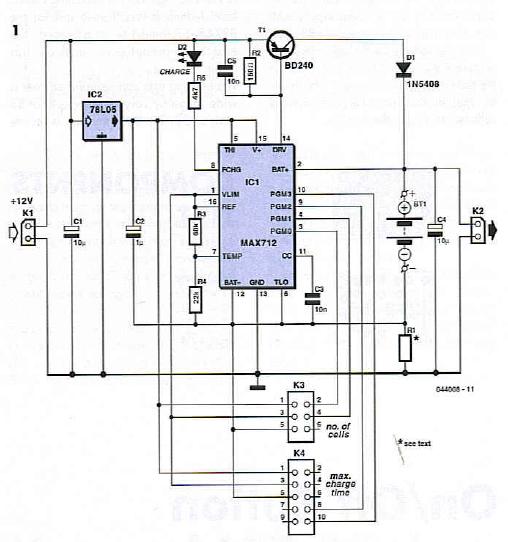

The circuit presented here is intended for charging NiMH batteries. The MAX712 IC used here contains all the necessary functionality to make sure that this hap­pens in a controlled manner. Figure 1 shows the schematic of the charger. The heart of the circuit is easily recognized: everything is arranged around IC1, a MAX712 from Maxim. This IC is avail­able in a standard DIP package, which is convenient for the hobbyist because it can be directly fitted on standard though-hole prototyping board.



IC1 uses Tl to regulate the current in the battery. Rl is used by IC1 to measure the current. While charging, IC1 attempts to maintain a constant voltage, equal to 250 mV, across Rl. By adjusting the value of Rl the charging current can be set. The value of Rl can be calculated using the formula below:

Rl=250mV/ lcharge

For a charging current of 1 A, the value of Rl has to be 250 mV / 1 A = 0.25Ω. The power dissipated by Rl equals U x / = 0.25 x 1 = 250 mW. A 0.5-watt resistor will therefore suffice for Rl.

Transistor Tl may need a small heatsink depending on the charging current and supply voltage.

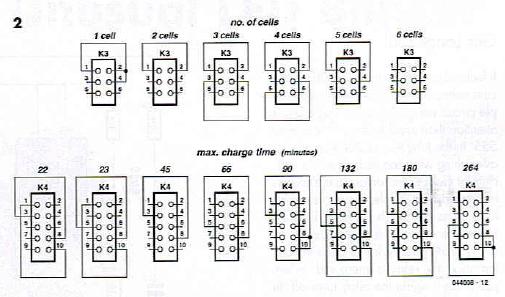

IC1 needs a small amount of user input regarding the maximum charging time and the number of cells in the battery to be charged. IC1 has four inputs, PGM0 to PGM3, for this purpose. These are not ordinary digital inputs (which recognize only 2 states) but special inputs that recognize 4 different states, namely V+, Vref, BATT- or not connected. To make this a little bit more user friendly, we’ve brought out the necessary connections to 2 con­nectors (K3 and K4). A number of dongles have been made (Figure 2) that can be plugged into these connectors and set the number of cells and the maximum charging time.



When determining the maximum charg­ing lime we have to take into account the charging current and the capacity of the cells that are connected. The charging time can be calculated with the formula:

Tcharge = Ccell / Lcharge x 1.2

where Ccell is the capacity in Ah (e.g., 1200mAh= 1.2 Ah).

After the nominal charging time has been calculated, we can use the first dongle that has a value that is equal or greater than the calculated charging time. For example, if we calculated a maximum charging time of 38 minutes, we have to select the dongle for 45 minutes.

When IC1 is replaced by a MAX713, the charger becomes suitable for charging NiCd batteries (but not suitable for NiMH batteries any morel). The only difference between these two ICs is the value of the detection point at which the cell(s) are considered to be completely charged. The ICs are otherwise identical with regard to pin-out, method of adjustment, etc. To make it easy to swap between the ICs, we recommend an IC-socket for IC1.
