Discrete Robot

Published:2011/8/10 20:50:00 Author:Amy From:SeekIC

Gerhard Nocker

This simple robot, which responds to light and avoids obstacles, can be built without using a microcontroller, pro­grammer or PC. The only ’special’ com­ponent in the circuit is a window dis­criminator (a fancy version of a window comparator).

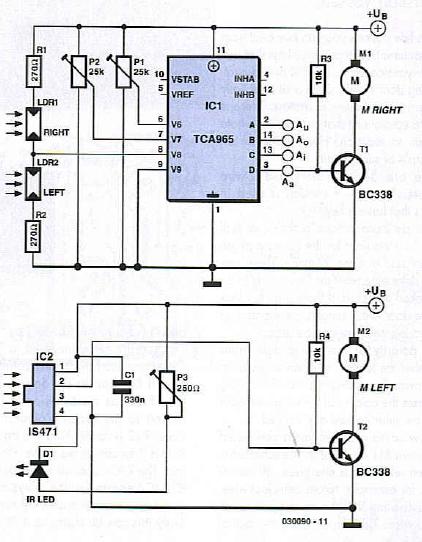

Resistors R1 and R2 in combination with light-dependent resistors LDR1 and LDR2 form a voltage divider (with the current being limited by Rl and R2 for bright light). Window discriminator TCA965 compares the mid-point volt­age with an upper threshold value (adjustable using PI) and a lower threshold value (adjustable using P2). Outputs Au, Ai, Ao, and Aa go High if the voltage lies below, inside, above or outside this window, respectively; oth­erwise they remain Low. Output AA switches transistor Tl, which drives the right-hand motor. The light-dependent resistors can be attached on the left and right sides of the vehicle, or at the front and rear. This causes the robot to turn to the right, due to the motor on one side being stopped, until the desired lighting relationship is restored. The vehicle will then continue to travel in a straight line until the lighting relation­ship again changes, at which point it will again turn, and so on.



You can experiment with various behav­iour patterns by using the other outputs of the window discriminator. If a transistor is provided for each of the Au and Ao out­puts of the TCA965, the robot can be made to travel toward or away from a light source, depending on the connec­tions. Using the window discriminator, the robot will operate under the rules of a three-point controller (left, straight ahead, or right). If you fit the light-dependent resistors in a box under the vehicle together with a light source, you can try to have the robot follow a black line on a white background.

A reflective IR sensor enables the robot to respond to obstacles. This not as sim­ple as it might seem, since the Sharp IS471 operates the IR LED with pulsed light and uses sophisticated detection processing. When an obstacle is detected, the output (pin 2) goes Low and blocks transistor T2. This causes the motor to stop, and the vehicle will rotate about the stationary wheel until the obstacle is no longer in its path. The sen­sitivity of the IS471 can be set using P3. As its range is only around 10-15 cm, the vehicle must not travel too quickly, since otherwise it will not be able to avoid obstacles in time.

This part of the circuit is also open for experimentation. If a relatively large and fast robot requires an obstacle detector (or isn’t fitted with the 15471), an ultra­sonic detector can also be used. Suitable complete construction kits are available from Conrad, for example. You can also fit a suitable mechanical pushbutton switch mounted on a flexible rod. The obstacle detector can also drive a warning buzzer or a lamp; the circuit leaves lots of room for your own ideas.

The circuit works over a wide range of supply voltages from 4.5 to 16 V. If larger motors are used, transistors with increased power-handling capacity and heavier batteries are necessary. The author connected two 4.8-V rechargeable batteries in series and used BC388 transistors as drivers for Lego micromotors. You can build the robot entirely according to what you have in your parts box. The mechanical elements can also be freely selected, but they partially determine the behaviour and operation of the robot. The author’s robot is made from a Lego chas­sis with a prototyping board holding the circuitry attached using elastic bands. The motors are fitted on the left-hand and right-hand sides. The third wheel at the front can turn freely.

One problem must be mentioned: if an obstacle is detected while an incorrect lighting relationship is present, the vehi­cle remains standing. In this case, a bit of logic could be added to cause both motors to rotate in reverse. However, that would require directional switches for the motors or motor driver ICs (L293D). The simple circuit would become more com­plicated and larger, and at some point you would end up using a microcontroller after all — but that’s just the point of the story.
